SPX385-5.0

Features:

Trimmed Bandgap .......................................... 1%
Wide Operating Current ............... 50A to 20mA
Extended Temperature Range ... -40°C to +85°C
Dynamic Impedance .............................. 1 max
Offered in Small SOT-23, TO-92, NSOIC, and SOT-89
Low Cost Solution


Application

Battery Operated Equipment
Adjustable Supplies
Switching Power Supplies
Error Amplifiers
Single Supply Amplifier
Monitors / VCR / TV
Personal Computers
Power use meter

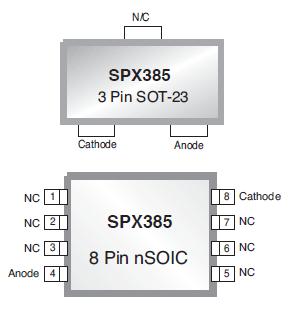

Pinout




Specifications

Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Reverse Current (I_KA) ............................................................. 30mA
Forward Current (I_AK) ............................................................. 10mA
Operating Temperature Range (T_A) ........................................ -40 to +85°C
Junction Temperature (T_J) ...................................................... 150°C
Storage Temperature (T_STG) .................................................. - 65 to 150°C
Lead Temperature (Soldering 10 sec.), T_L .............................. 300°C


Description

The SPX385-5.0 is a micropower 2-terminal band-gap voltage reference with a very wide operating current range from 50A to 20mA that provides a stable voltage.

The SPX385-5.0 is available in SOT-23, TO-92, NSOIC, and SOT-89 packages with an operating temperature range of -40°C to 85°C. A 1.2 and 2.5 volt device are also available - SPX385-1.2, SPX385-2.5.
