SRC4192(1)

 AUTOMATIC SENSING OF THE INPUT-TO-OUTPUT SAMPLING RATIO
WIDE INPUT-TO-OUTPUT SAMPLING RANGE:16:1 to 1:16
SUPPORTS INPUT & OUTPUT SAMPLINGRATES UP TO 212kHz
DYNAMIC RANGE: 144dB (-60dbFS input,BW = 20Hz to f_S/2, A-Weighted)
THD+N:  -140dB (0dbFS input, BW = 20Hz tof_S/2)
ATTENUATES SAMPLING AND REFERENCECLOCK JITTER
HIGH PERFORMANCE, LINEAR PHASE DIGITAL FILTERING WITH BETTER THAN 140dB OF STOP BAND ATTENUATION
FLEXIBLE AUDIO SERIAL PORTS:Master or Slave Mode Operation Supports I2S, Left Justified, Right Justified, and TDM Data Formats Supports 16, 18, 20, or 24-Bit Audio Data TDM Mode allows daisy chaining of up to eight devices
SUPPORTS 24-, 20-, 18-, or 16-BIT INPUT AND OUTPUT DATA All output data is dithered from the internal 28-Bit data path
LOW GROUP DELAY OPTION FOR INTERPO-LATION FILTER
DIRECT DOWNSAMPLING OPTION FOR DECIMATION FILTER (SRC4193 ONLY)
SPI PORT PROVIDES ACCESS TO INTERNAL CONTROL REGISTERS (SRC4193 ONLY)
SOFT MUTE FUNCTION
BYPASS MODE
PROGRAMMABLE DIGITAL OUTPUT ATTENUATION (SRC4193 ONLY) 256 steps: 0dB to 127.5dB, 0.5dB/step
POWER DOWN MODE
OPERATES FROM A SINGLE +3.3 VOLT POWER SUPPLY

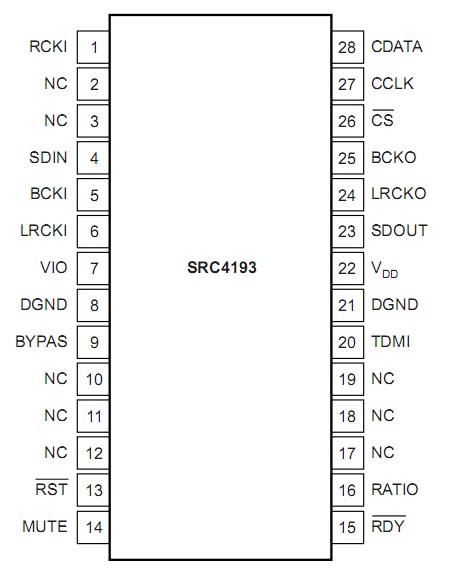

SMALL 28-LEAD SSOP PACKAGE
PIN COMPATIBLE WITH THE AD1896 (SRC4192 ONLY)⁽²⁾

Supply Voltage, V_DD .......................................................... 0.3V to +4.0V
Supply Voltage, V_IO ........................................................... 0.3V to +4.0V
Digital Input Voltage ............................................................ 0.3V to +4.0V
Operating Temperature Range ............................................. 45 to +85
Storage Temperature Range .............................................. 65 to +150

NOTE: (1) Stresses above these ratings may cause permanent damage.
Exposure to absolute maximum conditions for extended periods may de-
grade device reliability. These are stress ratings only, and functional opera-
tion of the device at these or any other conditions beyond those specified is
not implied.

The SRC4192 and SRC4193 are asynchronous sample rate converters designed for professional and broadcast audio applications. The SRC4192 and SRC4193 combine a wide input-to-output sampling ratio with outstanding dynamic range and ultra low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multi- plexed (TDM) mode. Flexible audio interfaces allow the SRC4192 and SRC4193 to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors.

The SRC4192 is a standalone pin programmed device, with control pins for mode, data format, mute, bypass, and low group delay functions. It is a software-controlled device featuring a serial peripheral interface (SPI) port, which is utilized to program all functions via internal control registers. They may be operated from a single +3.3V power supply. A separate digital I/O supply (VIO) operates over the +1.65V to +3.6V supply range, allowing greater flexibility when interfacing to current and future gen- eration signal processors and logic devices. Both the SRC4192 and SRC4193 are available in a 28-lead SSOP package.
