Product Details

Description



Features:

Compliant with DDR-I registered module specifications
Operates at 2.5V ± 0.2V VDD
 SSTL-2 compatible input structure
SSTL-2 compliant output structure
Differential SSTL-2 compatible clock inputs
Low power mode when device is reset
Industry standard 64 pin TSSOP package
 Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA)


Pinout

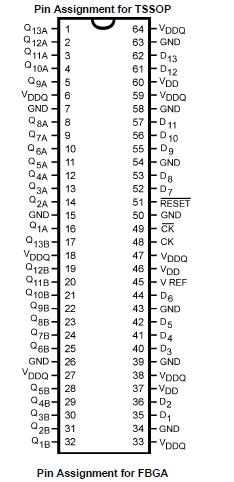

Connection Diagram


Specifications

Supply Voltage (VDDQ)          −0.5V to +3.6V
Supply Voltage (VDD)            −0.5V to +3.6V
Reference Voltage (VREF)      −0.5V to +3.6V
Input Voltage (VI)                −0.5V to VDD +0.5V
Output Voltage (VO)
Outputs Active (Note 4)         −0.5V to VDDQ + 0.5V
DC Input Diode Current (IIK)
VI < 0V                                           −50 mA
VI > VDD                                         +50 mA
DC Output Diode Current (IOK)
VO < 0V                                         −50 mA
VO > VDDQ                                     +50 mA
DC Output Source/Sink Current
(IOH/IOL)                                          ±50 mA
DC VDD or Ground Current
per Supply Pin (IDD or Ground)          ±100 mA
Storage Temperature Range (Tstg)  −65°C to +150°C
ESD (Human Body Model)                     7000V


Description

The SSTV16859 is a dual output 13-bit register designed for use with 184 and 232 pin DDR-1 memory modules. The device has a differential input clock, SSTL-2 compatible data inputs and a LVCMOS compatible RESET input. The device has been designed to meet the JEDEC DDR module register specifications.

The SSTV16859 has been fabricated on an advanced submicron CMOS process and is designed to operate at power supplies of less than 3.6V's.
