Features:

` Highly performant 16-bit CPU with DSP functions
31.25ns instruction cycle time at 64MHz max CPU clock
Multiply/accumulate unit (MAC) 16 x 16-bit multiplication, 40-bit accumulator
Enhanced boolean bit manipulations
Single-cycle context switching support
` On-chip memories
512 Kbyte Flash memory (32-bit fetch)
320 Kbyte extension Flash memory (16-bit fetch)
Single voltage Flash memories with erase/program controller and 100K erasing/programming cycles.
Up to 16 Mbyte linear address space for code and data (5 Mbytes with CAN or I2C)
2 Kbyte internal RAM (IRAM)
66 Kbyte extension RAM (XRAM)
` External bus
Programmable external bus configuration & characteristics for different address ranges
Five programmable chip-select signals
Hold-acknowledge bus arbitration support
` Interrupt
8-channel peripheral event controller for single cycle interrupt driven data transfer
16-priority-level interrupt system with 56 sources, sampling rate down to 15.6ns
` Timers
Two multi-functional general purpose timer units with 5 timers
` Two 16-channel capture / compare units
` 4-channel PWM unit + 4-channel XPWM
` A/D converter
24-channel 10-bit
3s minimum conversion time
` Serial channels
Two synch. / asynch. serial channels
Two high-speed synchronous channels
One I2C standard interface
` 2 CAN 2.0B interfaces operating on 1 or 2 CAN busses (64 or 2x32 message, C-CAN version)
` Fail-safe protection
Programmable watchdog timer
Oscillator watchdog
` On-chip bootstrap loader
` Clock generation
On-chip PLL with 4 to 12 MHz oscillator
Direct or prescaled clock input
` Real time clock and 32 kHz on-chip oscillator
` Up to 111 general purpose I/O lines
Individually programmable as input, output or special function
Programmable threshold (hysteresis)
` Idle, power down and stand-by modes
` Single voltage supply: 5V ±10% (embedded regulator for 1.8 V core supply)


Pinout

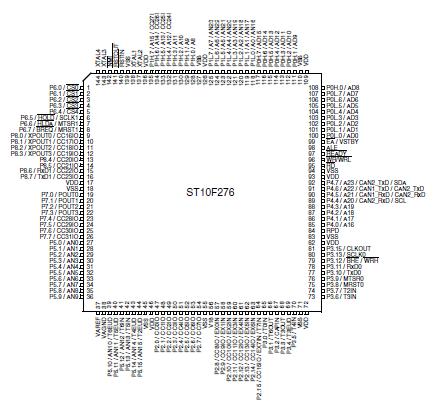

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD Voltage on VDD pins with respect to ground (VSS) - 0.3 to +6.5 V
VSTBY Voltage on VSTBY pin with respect to ground (VSS) - 0.3 to +6.5 V
VAREF Voltage on VAREF pin with respect to ground (VSS) - 0.3 to VDD + 0.3 V
VAGND Voltage on VAGND pin with respect to ground (VSS) VSS V
VIO Voltage on any pin with respect to ground (VSS) - 0.5 to VDD + 0.5 V
IOV Input current on any pin during overload condition ± 10 mA
ITOV Absolute sum of all input currents during overload condition | 75 | mA
TST Storage temperature - 65 to +150 °C
ESD ESD susceptibility (human body model) 2000 V
