ST20-TP1

Features: ·Enhanced 32-bit VL-RISC CPU • 0 to 40 MHz processor clock • fast integer/bit operations • very high code density·8 Kbytes on-chip SRAM • 160 Mbytes/s maximum bandwidth·Programmable memory interface • 4 separately configurable regions • 8/16/32 bits wi...

product image

ST20-TP1 Picture
See larger image
SeekIC No. : 004506360 Detail

ST20-TP1: Features: ·Enhanced 32-bit VL-RISC CPU • 0 to 40 MHz processor clock • fast integer/bit operations • very high code density·8 Kbytes on-chip SRAM • 160 Mbytes/s maximum bandw...

ST20-TP1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST20-TP1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Enhanced 32-bit VL-RISC CPU
    • 0 to 40 MHz processor clock
    • fast integer/bit operations
    • very high code density
·8 Kbytes on-chip SRAM
    • 160 Mbytes/s maximum bandwidth
·Programmable memory interface
   • 4 separately configurable regions
   • 8/16/32 bits wide
   • support for mixed memory
   • 2 cycle external access
   • support for page mode DRAM
   • support for MPEG decoders
·Serial communications
   • OS-Link
   • 2 Programmable UARTs (ASC)
   • 2 Synchronous serial interfaces (I2C)
·Vectored interrupt subsystem
   • Prioritized interrupts
   • 8 levels of preemption
   • 500 ns response time
·DMA engines/interfaces
   • Link IC DMA interface
   • DES descrambler DMA
   • Block move DMA
   • 2 MPEG decoder DMAs
   • High speed data port DMA
   • SmartCard interface
·PWM/counter module
   • Two 8-bit PWM
   • Two 32-bit counters and capture registers
·Programmable IO module
   • 32 fully programmable IO bits
·Professional toolset support
   • ANSI C compiler and libraries
   • INQUEST advanced debugging tools
·Technology
   • 0.5 micron process technology
·208 pin PQFP package
·JTAG Test Access Port


Application

· Set top terminals


Pinout

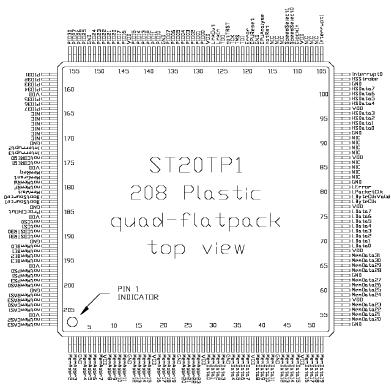

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VDDmax
VImax
VOmax
IOmax
TSmax
TAmax		 DC supply voltage
Voltage on input and bi-directional pins
Voltage on output pins
DC output current
Storage temperature (ambient)
Temperature under bias (ambient)

GND-0.6
GND-0.6

-55
-55
V
V
V
mA


Note: Stresses greater than those listed under 'Absolute maximum ratings' may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

This is defined for the device ST20-TP1 in a standard BSDL file. This file can be obtained through your local SGS-THOMSON distributor or sales office.
