ST207E

Features:

·ESDPROTECTIONFOR RS-232 I/OPINS: ± 15 KVHUMAN BODYMODEL
·GUARANTEED 120kbpsDATE RATE - LapLink] COMPATIBLE
·GUARANTEED SLEWRATE 3V/ms (Min)
·OPERATEFROMA SINGLE 5VPOWER SUPPLY
·PACKAGEDIN SO-24,SSO-24AND TSSOP24 PACKAGES

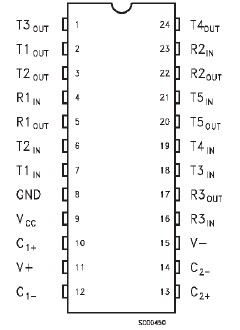

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	-0.3 to 6	V
V+	Extra Positive Voltage	(VCC - 0.3) to 14	V
V-	Extra Negative Voltage	-14 to 0.3	V
TIN	Transmitter Input Voltage Range	-0.3 to (VCC + 0.3)	V
RIN	Receiver Input Voltage Range	±30	V
TOUT	Transmitter Output Voltage Range	(V- - 0.3) to (V+ + 0.3)	V
ROUT	Receiver Output Voltage Range	-0.3 to (VCC + 0.3)	V
TSCTOUT	Short Circuit Duration on TOUT	Continuous
Tstg	Storage Temperature Range	-65 to +150

Description

The ST207E is a 5 driver and 3 receiver devices designed for RS-232 and V.28 communications in harsh enviroments. Each transmitter output and receiver input is protected against ±15KV electrostatic discharge (ESD) shocks. The drivers and receivers of the ST207E meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120Kbps, when loaded in accordance with the EIA/TIA-232E specification.

The ST207E operates with four 0.1mF capacitors.

ST207E cames in 24-pinSO and TSSOP packages.
