ST232A

Features:

 SUPPLYVOLTAGERANGE: 4.5 TO5.5V
SUPPLYCURRENT NOLOAD(TYP): 1.5mA
TRANSMITTEROUTPUT VOLTAGESWING (TYP): ±9V
TRANSITION SLEWRATE (TYP.):12V/µs
RECEIVERPROPAGATIONDELAY (TYP.):0.1µs
RECEIVERINPUT VOLTAGERANGE:  ±30V
DATARATE(TYP): 400Kbp/s
OPERATINGTEMPERATURE RANGE:-40 TO85 , 0 TO70

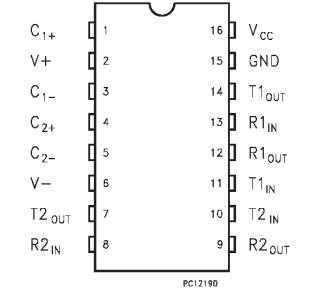

Pinout




Specifications



Symbol	Parameter	Value	Unit
VCC	Supply Voltage	-0.3 to 6	V
V+	Extra Positive Voltage	(VCC -0.3) to 13.2	V
V-	Extra Negative Voltage	0.3 to -13.2	V
TIN	Transmitter Input Voltage Range	-0.3 to (VCC + 0.3)	V
RIN	Receiver Input Voltage Range	±30	V
TOUT	Transmitter Output Voltage Range	±15	V
ROUT	Receiver Output Voltage Range	-0.3 to (VCC + 0.3)	V
TSCTOUT	Short Circuit Duration on TOUT	infinite

Description

The ST232A is a 2 driver, 2 receiver device following EIA/TIA-232 and V.28 communication standard. It is particularly suitable for applications where ±12V is not available. The ST232 uses a
single 5V power supply and only four external capacitors (0.1µF). Typical applications are in:Portable Computers, Low Power Modems,Interfaces Translation, Battery Powered RS-232 System,Multi-Drop RS-232 Networks.
