Features: ` User Program Memory ROM/OTP/EPROM: 8 to 16K bytes
` Data RAM: 384 to 512 bytes (256 bytes stack)
` Master Reset and Power-On Reset
` Run, Wait, Slow, Halt and RAM Retention modes
` 18 I/O lines:
1 programmable interrupt input
5 high sink outputs
4 analog alternate inputs
8 alternate functions
EMI filtering
` Programmable watchdog (WDG)
` 16-bit Timer with 2 Input Capture and 2 Output Compare functions (with 1 output pin)
` 8-bit Analog to Digital Converter with 4 channels
` Four 10-bit Digital to Analog Converter channels with PWM output
` Fast I2C Multi Master Interface
` 63 basic instructions and 17 main address modes
` 8x8 unsigned multiply instruction
` True bit manipulation
` Versatile Development Tools (DOS and Windows) including assembler, linker, C-compiler, archiver, source level debugger, and hardware emulator

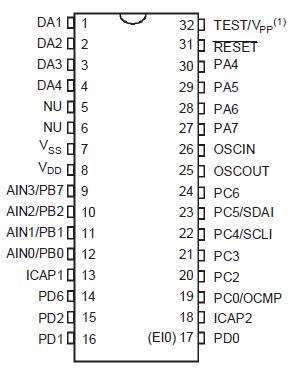

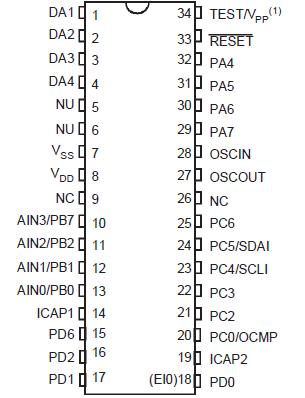

Pinout
Specifications
|
Symbol |
Parameter |
Value |
Unit |
|
VDD |
Supply Voltage |
-0.3 to 6.0 |
V |
|
VDDA |
Analog Reference Voltage |
-0.3 to 6.0 |
V |
|
VI |
Input Voltage |
VSS - 0.3 to VDD + 0.3 |
V |
|
VO |
Output Voltage |
VSS - 0.3 to VDD + 0.3 |
V |
|
IVDD |
Total Current into VDD (source) |
TBD |
mA |
|
IVSS |
Total Current out of VSS (sink) |
TBD |
mA |
|
TJ |
Junction Temperature |
150 |
°C |
|
TSTG |
Storage Temperature |
-60 to 150 |
°C |
Note: Stresses above those listed as "absolute maximum ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these conditions is not implied. Exposure to maximum
rating conditions for extended periods may affect device reliability.
DescriptionThe ST72272 series is a HCMOS microcontroller unit (MCU) from the ST7 family with a dedicated D/A Converter peripherals offering 4 PWM outputs.
It is based around an industry standard 8-bit core and offers an enhanced instruction set. The processor runs with an external clock up to 24 MHz with a 5.5V supply. Due to the fully static design of this device, operation down to DC is possible. Under software control the ST72272 can be placed in WAIT, SLOW or HALT mode thus reducing power consumption. The enhanced instruction set and addressing modes afford real programming potential.
In addition to standard 8-bit data management the ST7 features true bit manipulation, 8x8 unsigned multiplication and indirect addressing modes on the whole memory.
The ST72272 includes an on-chip oscillator, CPU, 8 to 16 Kbytes ROM/OTP/EPROM, 384 to 512 bytes RAM, 18 I/O lines, a Timer with 2 Input Captures and 2 Output Compares, a 4-channel A/D Converter, an I2C multi Master, a Watchdog Reset and a 4-channel 10-bit D/A Converter with PWM output.
ST72272 Data Sheet
