Product Details

Description

Features:

Memories
   Up to 32K of ROM or High Density Flash (HDFlash) program memory with read/write protection
   For HDFlash devices, In-Application Programming (IAP) via USB and In-Circuit programming (ICP)
   Up to 5 Kbytes of RAM with up to 256 bytes stack
Clock, Reset and Supply Management
    PLL for generating 48 MHz USB clock using a 12 MHz crystal
    Low Voltage Reset (except on E suffix devices)
    Dual supply management: analog voltage detector on the USB power line to enable smart power switching from USB power to battery(on E suffix devices).
    Programmable Internal Voltage Regulator for Memory cards (2.8V to 3.5V) supplying:Flash Card I/O lines (voltage shifting) Up to 50 mA for Flash card supply
   Clock-out capability
47 programmable I/O lines
   15 high sink I/Os (8mA @0.6V / 20mA@1.3V)
   5 true open drain outputs
   24 lines programmable as interrupt inputs
USB (Universal Serial Bus) Interface
   with DMA for full speed bulk applications compliant with USB 12 Mbs specification (version 2.0 compliant)
   On-Chip 3.3V USB voltage regulator and transceivers with software power-down
   5 USB endpoints:
       1 control endpoint
       2 IN endpoints supporting interrupt and bulk
       2 OUT endpoints supporting interrupt and bulk
   Hardware conversion between USB bulk packets and 512-byte blocks
Mass Storage Interface
DTC (Data Transfer Coprocessor): Universal Serial/Parallel communications interface, with software plug-ins for current and future protocol
standards:
       Compact Flash - Multimedia Card -
       Secure Digital Card - SmartMediaCard -
       Sony Memory Stick - NAND Flash -
       ATA Peripherals
2 Timers
   Configurable Watchdog for system reliability
   16-bit Timer with 2 output compare functions.
2 Communication Interfaces
   SPI synchronous serial interface
   I2C Single Master Interface up to 400 KHz
D/A and A/D Peripherals
   PWM/BRM Generator (with 2 10-bit PWM/BRM outputs)
   8-bit A/D Converter (ADC) with 8 channels
Instruction Set
    8-bit data manipulation
    - 63 basic instructions
   17 main addressing modes
   8 x 8 unsigned multiply instruction
True bit manipulation
Development Tools
Full hardware/software development package

Pinout

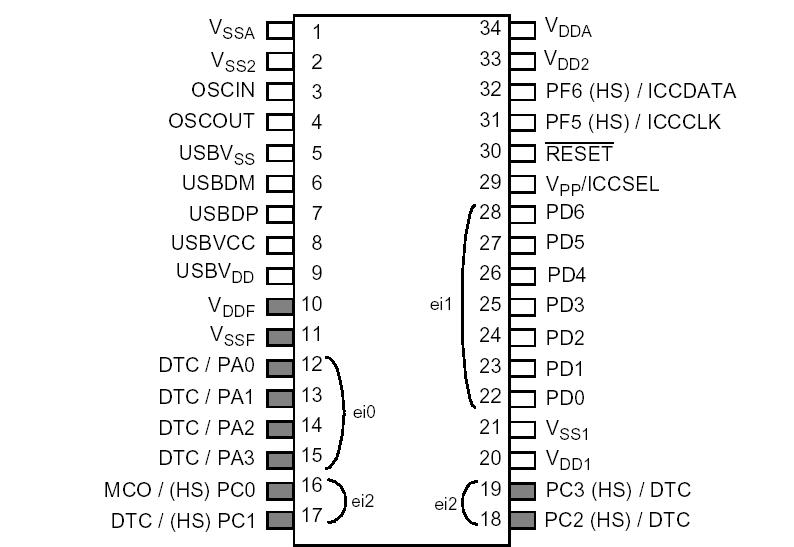

Connection Diagram

Description

The ST72651 MCU supports volume data exchange with a host (computer or kiosk) via a full speed USB interface. The MCU is capable of handling various transfer protocols, with a particular emphasis on mass storage applications.ST7265x is compliant with the USB Mass Storage Class specifications, and supports related protocols such as BOT (Bulk Only Transfer) and CBI (Control, Bulk, Interrupt).It is based on the ST72651 standard 8-bit core, with specific peripherals for managing USB full speed data transfer between the host and most types of FLASH media card:

A full speed USB interface with Serial Interface Engine, and on-chip 3.3V regulator and transceivers.
A dedicated 24 MHz Data Buffer Manager state machine for handling 512-byte data blocks (this size corresponds to a sector both on computers and FLASH media cards).
A Data Transfer Coprocessor (DTC), able to handle fast data transfer with external devices. This DTC also computes the CRC or ECC required to handle Mass storage media.
An Arbitration block gives the ST7 core priority over the USB and DTC when accessing the Data Buffer. In USB mode, the USB interface is serviced before the DTC.
A FLASH Supply Block able to provide programmable supply voltage and I/O electrical levels to the FLASH media.
