Product Details

Description



Pinout

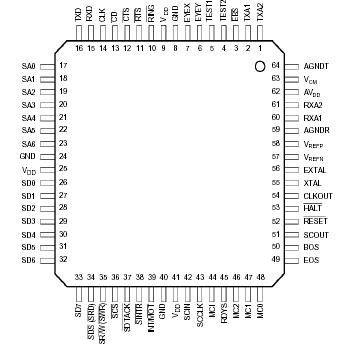

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD DC Supply Voltage -0.3 to 7.0 V
VI, VIN Digital or Analog Input Voltage -0.3 to (VDD + 0.3) V
II, IIN Digital or Analog Input Current ± 1 mA
IO Digital Output Current ± 20 mA
IOUT Analog Output Current ± 10 mA
Toper Operating Temperature 0, + 70 °C
Tstg Storage Temperature (plastic) - 40, + 125 °C
Ptot Maximum Power Dissipation 1000 mW



Description

The SGS-THOMSON Microelectronics ST75C520 chip is a highly integrated modem engine, which can operate with all currently used FAX group III standards up to 14400bps. Full V.21, V.23 and Bell 103 full duplex modem standards are implemented.
