ST92185B

Features:

Register File based 8/16 bit Core Architecture with RUN, WFI, SLOW and HALT modes
0°C to +70°C operating temperature range
Up to 24 MHz. operation @ 5V±10%
Min. instruction cycle time: 165ns at 24 MHz.
16, 24 or 32 Kbytes ROM
256 bytes RAM of Register file (accumulators or index registers)
256 bytes of on-chip static RAM
2 Kbytes of TDSRAM (Display Storage RAM)
28 fully programmable I/O pins
Serial Peripheral Interface
Flexible Clock controller for OSD, Data Slicer and Core clocks running from a single low frequency external crystal.
Enhanced display controller with:
26 rows of 40 characters or 24 rows of 80 characters
Serial and Parallel attributes
10x10 dot matrix, 512 ROM characters, definable by user
4/3 and 16/9 supported in 50/60Hz and 100/ 120 Hz mode
Rounding, fringe, double width, double height,scrolling, cursor, full background color, halfintensity color,translucency and half-tone modes
Integrated Sync Extractor and Sync Controller
14-bit Voltage Synthesis for tuning reference voltage
Up to 6 external interrupts plus one Non-Maskable Interrupt
8 x 8-bit programmable PWM outputs with 5V open-drain or push-pull capability
16-bit watchdog timer with 8-bit prescaler
One 16-bit standard timer with 8-bit prescaler
4-channel A/D converter; 5-bit guaranteed
Rich instruction set and 14 addressing modes
Versatile development tools, including Assembler, Linker, C-compiler, Archiver,Source Level Debugger and hardware
emulators with Real-Time Operating System available from third parties
Pin-compatible EPROM and OTP devices available (ST92E195D7D1, ST92T195D7B1)
Pin-compatible with the ST92195 family with embedded teletext decoder

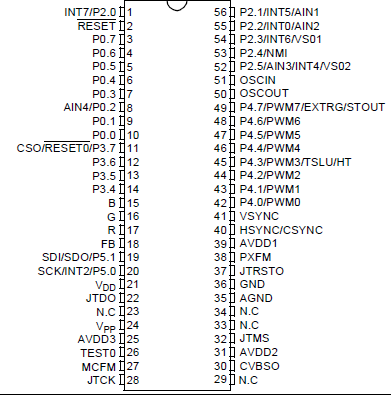

Pinout




Description

The ST92185B microcontroller is developed and manufactured by STMicroelectronics using a proprietary n-well HCMOS process. Its performance derives from the use of a flexible 256-register programming model for ultra-fast context switching and real-time event response. The intelligent onchip peripherals offload the ST9 core from I/O and data management processing tasks allowing critical application tasks to get the maximum use of core resources. The ST92185B MCU supports low power consumption and low voltage operation for power-efficient and low-cost embedded systems.
