ST93C06C

Pinout

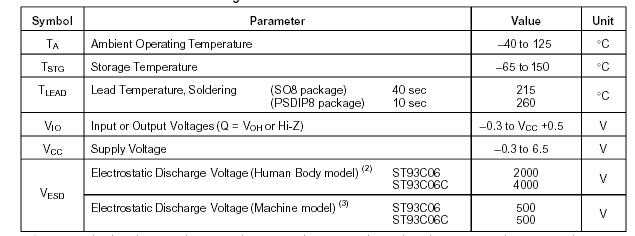

Specifications




Description

The ST93C06 and ST93C06C are 256 bit Electrically Erasable ProgrammableMemory (EEPROM) fabricatedwith SGS-THOMSON'sHigh Endurance SinglePolysiliconCMOS technology. In the text the two products are referred to as ST93C06. The memory is divided into either 32 x 8 bit bytes or 16 x 16 bit words. The organization may be selected by a signal applied on the ORG input. The memory of the ST93C06C is accessed through a serial input (D) and by a set of instructions which includes Read a byte/word, Write a byte/word, Erase a byte/word, Erase AllandWrite All. ARead instruction loadsthe address of the first byte/word to be read into an internal address pointer.
