ST93C56C

Features: 1 MILLION ERASE/WRITE CYCLES, with40 YEARS DATARETENTIONDUAL ORGANIZATION: 128 x 16 or 256 x 8BYTE/WORDand ENTIRE MEMORYPROGRAMMING INSTRUCTIONSSELF-TIMED PROGRAMMING CYCLE withAUTO-ERASEREADY/BUSY SIGNAL DURINGPROGRAMMINGSINGLE SUPPLY VOLTAGE: 4.5V to 5.5V for ST93C56 version 3V to 5....

product image

ST93C56C Picture
See larger image
SeekIC No. : 004506919 Detail

ST93C56C: Features: 1 MILLION ERASE/WRITE CYCLES, with40 YEARS DATARETENTIONDUAL ORGANIZATION: 128 x 16 or 256 x 8BYTE/WORDand ENTIRE MEMORYPROGRAMMING INSTRUCTIONSSELF-TIMED PROGRAMMING CYCLE withAUTO-ERASER...

ST93C56C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST93C56C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1 MILLION ERASE/WRITE CYCLES, with
40 YEARS DATARETENTION
DUAL ORGANIZATION: 128 x 16 or 256 x 8
BYTE/WORDand ENTIRE MEMORY
PROGRAMMING INSTRUCTIONS
SELF-TIMED PROGRAMMING CYCLE with
AUTO-ERASE
READY/BUSY SIGNAL DURING
PROGRAMMING
SINGLE SUPPLY VOLTAGE:
  4.5V to 5.5V for ST93C56 version
  3V to 5.5V for ST93C57 version
SEQUENTIAL READ OPERATION
5ms TYPICAL PROGRAMMING TIME
ST93C56, ST93C56C, ST93C57Care
   replaced by the M93C56

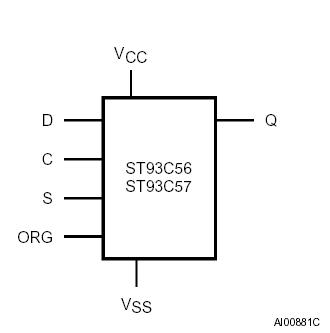

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
TA Ambient Operating Temperature 40 to 125
TSTG Storage Temperature 65 to 150
TLEAD Lead Temperature, Soldering (SO8 package)             40 sec

                                               (PSDIP8 package)        10 sec		 215
260
VIO Input or Output Voltages (Q = VOH or Hi-Z) 0.3 to VCC +0.5 V
VCC Supply Voltage 0.3 to 6.5 V
VESD Electrostatic Discharge Voltage (Human Body model) (2) 4000 V
Electrostatic Discharge Voltage (Machine model) (3) 500 V



Description

This specification of the ST93C56C covers a range of 2K bit serial EEPROM products, the ST93C56, 56C specified at 5V ± 10% and the ST93C57C specified at 3V to 5.5V. In the text, products are referred to as ST93C56.

The ST93C56C is a 2K bit Electrically Erasable ProgrammableMemory(EEPROM) fabricatedwith SGS-THOMSON's High EnduranceSingle Polysilicon CMOS technology. The memory is accessed through a serial input (D) and output (Q). The 2K bit memory is divided into either 256 x 8 bit bytes or 128 x 16 bit words. The organization may be selected by a signal applied on the ORG input.
