Common Mode Rejection Ratio (Min)
:
Packaging
: Tube
Maximum Operating Temperature
: + 150 C
Mounting Style
: Through Hole
THD plus Noise
: 0.05 %
Output Power
: 20 W
Operating Supply Voltage
: 9 V, 12 V, 15 V
Product
: Class-AB
Output Type
: 1-Channel Mono or 2-Channel Stereo
Package / Case
: Multiwatt-11
Available Set Gain
: 20 dB
Maximum Power Dissipation
: 36000 mW
Supply Current
: 5 A
Features: · VERY FEW EXTERNAL COMPONENTS
· NO BOUCHEROT CELLS
· NO BOOSTRAP CAPACITORS
· HIGH OUTPUT POWER
· NO SWITCH ON/OFF NOISE
· VERY LOW STAND-BY CURRENT
· FIXED GAIN (20dB STEREO)
· PROGRAMMABLE TURN-ON DELAY
· CLIPPING DETECTOR

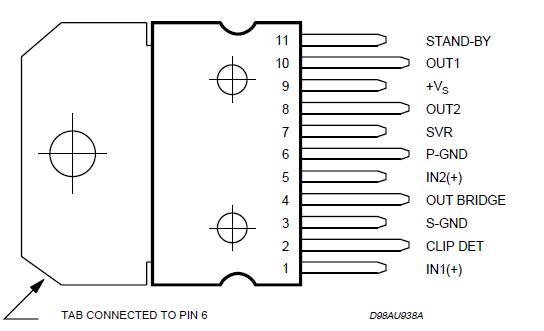

· ST-BY FUNCTIONPinout

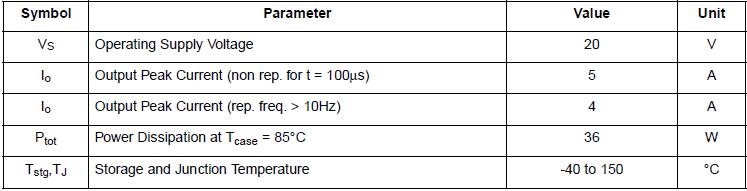

Specifications
DescriptionThe STA7360 is a new technology class AB Audio Power Amplifier in the Multiwatt® package.Thanks to the fully complementary PNP/NPN output configuration the high power performance of the STA7360 is obtained without bootstrap capacitors.
A delayed turn-on mute circuit eliminates audible on/ off noise, and a novel short circuit protection system prevents spurious intervention with highly inductive loads.
The STA7360 provides a circuit for the detection of clipping in the output stages. The output, an open collector is able to drive systems with automatic volume control.
Parameters: | Technical/Catalog Information | STA7360 |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | Multiwatt-11 (Vertical, Bent and Staggered Leads) |
| Type | Class AB |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Voltage - Supply | 8 V ~ 18 V |
| Packaging | Tube |
| Features | Depop, Short-Circuit and Thermal Protection, Standby |
| Max Output Power x Channels @ Load | 20W x 1 @ 4 Ohm; 11W x 2 @ 2 Ohm |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STA7360
STA7360
|
