STB1132

Features: • PC(Collector dissipation)=2W(Ceramic substate of 40×40×0.8mm used)• Low collector saturation voltage : VCE(sat)=-0.2V(Typ.)• Complementary pair with STD1664PinoutSpecifications Characteristic Symbol Ratings Unit Collector-Base Voltage VCEO -40 ...

product image

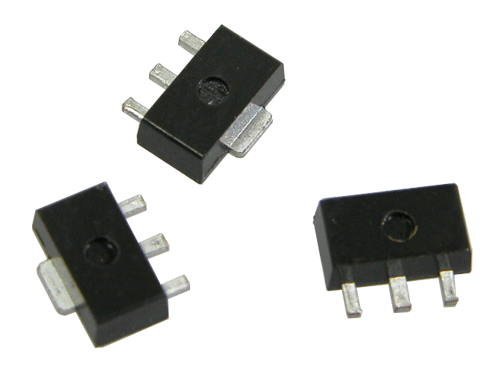

STB1132 Picture
See larger image
SeekIC No. : 004507070 Detail

STB1132: Features: • PC(Collector dissipation)=2W(Ceramic substate of 40×40×0.8mm used)• Low collector saturation voltage : VCE(sat)=-0.2V(Typ.)• Complementary pair with STD1664PinoutSpecif...

STB1132 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STB1132
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• PC(Collector dissipation)=2W(Ceramic substate of 40×40×0.8mm used)
• Low collector saturation voltage : VCE(sat)=-0.2V(Typ.)
• Complementary pair with STD1664




Pinout






Specifications

Characteristic
Symbol
Ratings
Unit
Collector-Base Voltage
VCEO
-40
V
Collector-Emitter voltage
VCBO
-32
V
Emitter-Base Voltage
VEBO
-5
V
Collector Current
IC
-1
A
Collector Power dissipation
PC
0.5
W

PC*
2
Junction temperature
Tj
150
Storage Temperature
Tstg
-55~150
* : When mounted on 40*40*0.8mm ceramic substate




Description

• Medium power amplifier

Bipolar transistors, also called junction type transistors of the STB1132, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)
