STB5610

Operating Frequency :
Supply Voltage - Max :
Supply Voltage - Min :
Maximum Power Dissipation :
Packaging : Tray
Operating Temperature Range : - 40 C to + 125 C
Supply Current : 37 mA
Package / Case : LQFP-48


Features:

• ONE CHIP SYSTEM TO INTERFACE GPS ANTENNA TO GPS MICRO CONTROLLER
• ABLE TO SUPPORT ACTIVE AND PASSIVE ANTENNA
• MINIMUM EXTERNAL COMPONENTS
• COMPATIBLE WITH GPS L1 SPS SIGNAL AND GALILEO FREQUENCIES
• CMOS OUTPUT LEVELS
• 2.7 V .. 3.6 V SUPPLY VOLTAGE
• EMBEDDED LOW PHASE NOISE PLL
• ACTIVE ANTENNA SENSOR
• SMART CHIP ENABLE FUNCTION FOR POWER CONSUMPTION OPTIMIZATION
• ESD PROTECTED

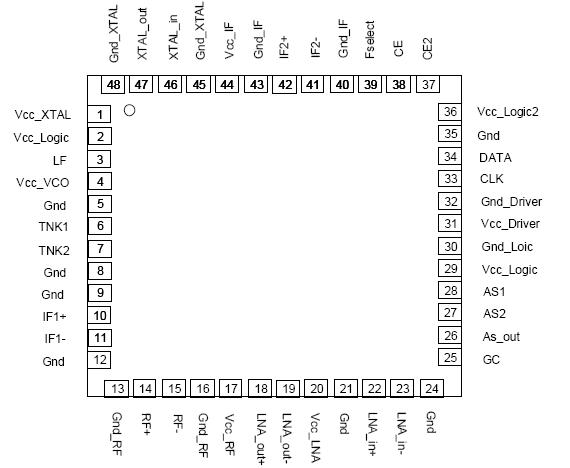

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vcc	Supply voltage	5.9	V
Tj	Junction operating temperature	-40 to 125	°C



Description

The STB5610, using ST Microelectronics RF Bipolar technology, implements a Global Positioning System RF front-end. The chip provides down conversion from the 1575.42 MHz GPS (L1) signal to 4.092 MHz Output signal. The integrated PLL with on-chip reference oscillator uses a low cost 16.368 MHz crystal. No TCXO is required.
