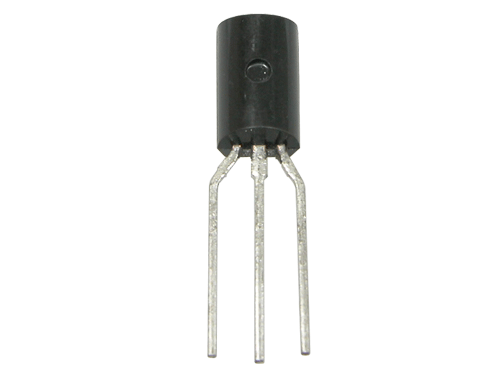

See larger image

SeekIC No. : 004507405 Detail

STD1862L: Features: • High current : IC=2A• Complementary pair with STB1277LPinoutSpecifications Characteristic Symbol Ratings Unit Collector-Base voltage VCBO 30 V Co...

STD1862L Data Sheet

Get Latest Price

Part Number:: STD1862L
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

STD10 evaluate
US $5.44 - 5.44 / Piece

FUSE INDUST 10A 240V BS IEC
STD1000B evaluate
US $.04 - .07 / Piece

LED Mounting Hardware .2" DIA X 1.0" BLACK
STD100BLK evaluate
US $.06 - .1 / Piece

LED Mounting Hardware .2" DIA X .10" BLACK

Product Details

Description

Features:

• High current : I_C=2A
• Complementary pair with STB1277L

Pinout

Specifications

Characteristic	Symbol	Ratings	Unit
Collector-Base voltage	V_CBO	30	V
Collector-Emitter voltage	V_CEO	30	V
Emitter-Base voltage	V_EBO	5	V
Collector current	I_C	2	A
Collector dissipation	P_C	1	W
Junction temperature	T_j	150
Storage temperature range	T_stg	-55~150

Description

STD1862L Bipolar transistors, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)

• Audio power amplifier
• High current application
