STE100P

Product : Ethernet Transceivers
Number of Transceivers : 1
Maximum Operating Temperature : + 85 C
Packaging : Tray
Data Rate : 10 Mbps, 100 Mbps
Supply Voltage - Min : 3.15 V
Supply Current (Max) : 100 mA
Package / Case : TQFP-64
Supply Voltage - Max : 3.45 V
Standard Supported : 100Base-TX, 10Base-T


Features:

 IEEE802.3u 100BASE-TX and IEEE802.3 10BASE-T compliant
 Support for IEEE802.3x flow control
 IEEE802.3u Auto-Negotiation support for 10BASE-T and 100BASE-TX
 MII interface
 Standard CSMA/CD or full duplex operation supported

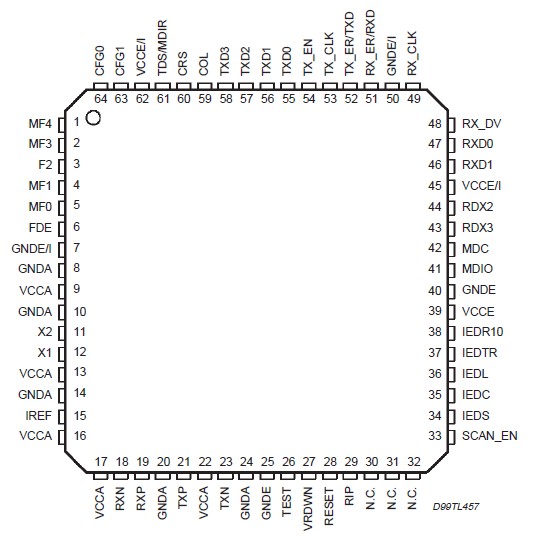

Pinout




Specifications

Parameter	Value
Supply Voltage(Vcc)	-0.5 V to 7.0 V
Input Voltage	-0.5 V to VCC + 0.5 V
Output Voltage	-0.5 V to VCC + 0.5 V
Storage Temperature	-65 °C to 150 °C(-85°F to 302°F)
Ambient Temperature	0°C to 70°C(32°F to 158°F)
ESD Protection	2000V

Description

The STE100P, also referred to as STEPHY1, is a high performance Fast Ethernet physical layer interface for 10BASE-T and 100BASE-TX applications. It was designed with advanced CMOS technology to provide a Media Independent Interface (MII) for easy attachment to 10/100 Media Access Controllers (MAC) and a physical media interface for 100BASETX of IEEE802.3u and 10BASE-T of IEEE802.3.

The STEPHY1 supports both half-duplex and full-duplex operation, at 10 and 100 Mbps operation. Its operating mode can be set using auto-negotiation, parallel detection or manual control. It also allows for the support of auto-negotiation functions for speed and duplex detection.
