STLC30R80

Interface Type :
Supply Voltage - Max :
Minimum Operating Temperature : - 40 C
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 85 C
Packaging : Tray
Product : SLIC
Package / Case : TQFP-44
Supply Voltage - Min : 3 V, 4.75 V
Supply Current : 0.1 mA, 5 mA


Features:

MONOCHIP SLIC SUITABLE FOR SHORT LOOP APPLICATIONS
IMPLEMENTES ALL KEY FEATURES OF THE BORSHT FUNCTION
INTEGRATED RINGING
SOFT BATTERY REVERSAL WITH PROGRAMMABLE TRANSITION TIME
ON HOOK TRANSMISSION
LOW POWER DISSIPATION IN ALL OPERATING MODES
AUTOMATIC DUAL BATTERY OPERATION
INTEGRATED RING TRIP DETECTION
METERING PULSE INJECTION
LOOP START, GROUND START FEATURES
SURFACE MOUNT PACKAGE
-40 TO +85°C OPERATING RANGE

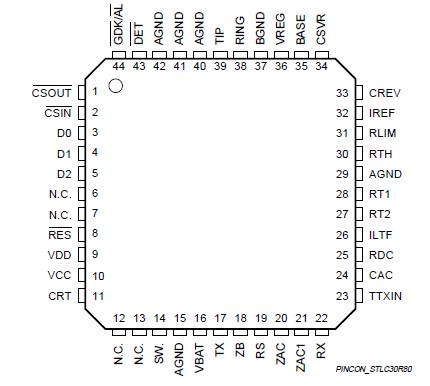

Pinout




Specifications

Symbol	Parameter	Value	Unit
VBAT	Battery voltage	-80 + VCC to +0.4 -80 + VREL to + 0.4	V V
VCC	Positive supply voltage	-0.4 to +7	V
VDD	Control Interface Supply Voltage	-0.4 to +7	V
A/R/BGND	AGND respect BGND	-2 to +2	V

Description

The STLC30R80 is a SLIC device suitable for short loop applications. The SLIC provides the generation of the ringing signal and the standard battery feeding with full programmability of the DC characteristic.

In particular two external resistors STLC30R80 allow to set the limiting current value (up to 50mA) and the value of the resistive feeding when not in constant current region.
