Product Details

Description



Features:

 CLASS C SATELLITECOMMUNICATIONS AMPLIFIER
1625- 1665 MHz
12/28 VOLTS
INPUT/OUTPUT 50 OHMS
Pout = 30 WMIN.
GAIN = 34.8 dB MIN.



Pinout

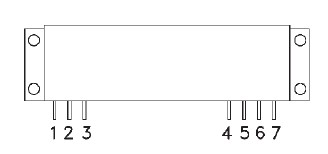

  Connection Diagram


Specifications

Symbol Parameter Value Unit
V DC Supply Voltage 30 Vdc
PIN RF Input Power (POUT  30 W) 20 mW
TSTG Storage Temperature Range - 40 to + 100
TC Operating Case Temperature -35 to + 70



Description

The STM1645-30 hybrid RF Power Module is designed for high power satellite communication applications in the 1.6 GHz frequency range.

High fT, gold metallized silicon microwave power devices, optimized for use in STM1645-30, are employed to provide high gain and efficiency while ensuring excellent reliability.
