MFG:ST Package Cooled:TO-220 D/C:00+
MFG: ST
Package Cooled: TO-220
D/C: 00+
Description: This application specific Power MOSFET is the third genaration of STMicroelectronis unique "Single Fea...
This application specific Power MOSFET is the third genaration of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows the best trade-off between on-resistance and gate charge. When used as high and low side in buck regulators, it gives the best performance in terms of both conduction and switching losses. This is extremely important for motherboards where fast switching and high efficiency are of paramount importance.
|
Symbol |
Parameter |
Value |
Unit |
| VDS |
Drain-source Voltage (VGS = 0) |
30 |
V |
| VDGR |
Drain-gate Voltage (RGS = 20 k) |
30 |
V |
| VGS |
Gate- source Voltage |
± 18 |
V |
| ID(#) |
Drain Current (continuous) at TC = 25°C |
70 |
A |
| ID |
Drain Current (continuous) at TC = 100°C |
50 |
A |
| DM(`) |
Drain Current (pulsed) |
280 |
A |
| Ptot |
Total Dissipation at TC = 25°C |
100 |
W |
|
Derating Factor |
0.67 |
W/°C | |
| dv/dt (1) |
Peak Diode Recovery voltage slope |
5.5 |
V/ns |
| EAS (2) |
Single Pulse Avalanche Energy |
500 |
mJ |
| Tstg |
Storage Temperature |
-55 to 175 |
°C |
| Tj |
Operating Junction Temperature |
SPECIFICALLY DESIGNED AND OPTIMISED FOR HIGH EFFICIENCY CPU CORE DC/DC CONVERTERS
STP70NF03L
PDF/DataSheet Download

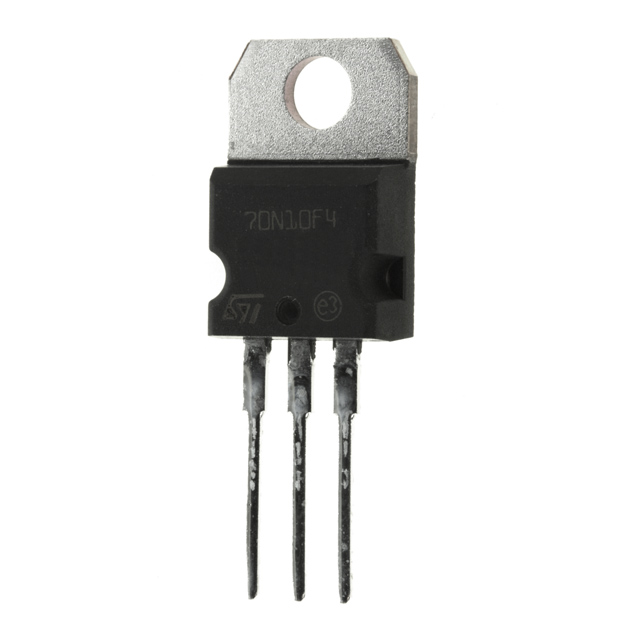

MOSFET N-CH 100V 65A TO-220
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performance. The new patented STrip layout coupled with the Company's proprietary edge termination structure, make...
This device STP6NM60Nis realized with the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company's strip layout to yield one of the world's lowest on-resistance and gate charge. It is...
The STP6NK90ZFP SuperMESH™ series is obtained through an extreme optimization of ST's well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capabi...
The STP6NK90Z SuperMESH™ series is obtained through an extreme optimization of ST's well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capabili...
The STP6NK70Z SuperMESH™ series is obtained through an extreme optimization of ST's well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capabili...
