STS2DNFS30L

PinoutSpecifications Symbol Parameter Value Unit VDS Drain-source Voltage (VGS = 0) 30 V VDGR Drain- gate Voltage (RGS = 20 k) 30 V VGS Gate-Source Voltage ± 15 V ID Drain Current (continuous) at Tc = 25 3 A ID Drain ...

product image

STS2DNFS30L Picture
See larger image
SeekIC No. : 004508766 Detail

STS2DNFS30L: PinoutSpecifications Symbol Parameter Value Unit VDS Drain-source Voltage (VGS = 0) 30 V VDGR Drain- gate Voltage (RGS = 20 k) 30 V VGS Gate-Sourc...

STS2DNFS30L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STS2DNFS30L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

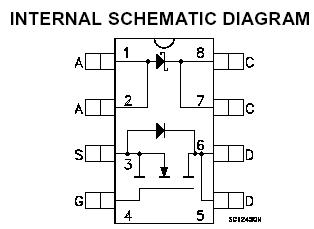

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDS
Drain-source Voltage (VGS = 0)
30
V
VDGR
Drain- gate Voltage (RGS = 20 k)
30
V
VGS
Gate-Source Voltage
± 15
V
ID
Drain Current (continuous) at Tc = 25
3
A
ID

Drain Current (continuous) at Tc = 100
1.9
A
IDM(`)
Drain Current (pulsed)
12
A
PTOT
Total Dissipation at TC = 25°C
2

W

Symbol
Parameter
Value
Unit
VRRM
Repetitive Peak Reverse Voltage
30
V
IF(RMS)
RMS Forward Current
7
A
IF(AV)
Average Forward Current
TL=135
=0.5
1
A
IFSM
Surge Non Repetit ive Forward Current
tp= 10 ms
Sinusoidal
45
A
IRSM
Non Repetitive Peak Reverse Current
tp=100 µs
1
A
dv/dt
Critical Rate Of Rise Of Reverse Voltage
10000
V/µs
(`) Pulse width limited by safe operating area.


Description

This STS2DNFS30L associates the latest low voltage STripFET™ in n-channel version to a low drop Schottky diode. Such configuration is extremely versatile in implementing, a large variety of DC-DC converters for printers, portable equipment, and cellular phones.
