STS5343

Pinout






Description

Bipolar transistors, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)

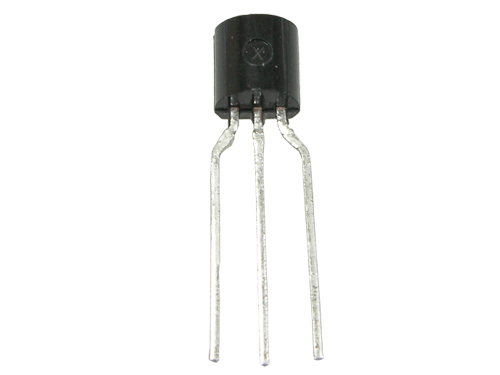

The STS5343 is general small signal amplifier.

Features of the STS5343 are:(1)low collector saturation voltage,VCB(sat)=0.25V(max.);(2)low output capacitance:Cab=2pF(typ.);(3)complementary pair with STS1980.

The absolute maximum ratings of the STS5343 can be summarized as:(1)collector-base voltage,VCBO:60V;(2)collector-emitter voltage,VCEO:50V;(3)emitter-base voltage,VEBO:5V;(4)collector current,IC:150mA;(5)collector dissipation,Pc:625mW;(6)junction temperature,Tj:150;(7)storage temperature,Tstg:-55 to 150.

If you want to know more information such as the electrical characteristics about the STS5343, please download the datasheet in www.seekic.com or www.chinaicmart.com .
