Part Number: STV0056AF
MFG: 960
Package Cooled: ST
Description: TheSTV0056AFBICMOSintegratedcircuit realizes all the necessary signal processingfromthe tunerto theAud...
- Table of contents:
STV0056AF
-
Suppliers
DataSheet
General Description
STV0056AF General Description
TheSTV0056AFBICMOSintegratedcircuit realizes all the necessary signal processingfromthe tunerto theAudio/Videoinput andoutputconnectorsregardless the satellite system.
STV0056AF Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC VDD |
Supply Voltage |
15 7.0 |
V |
|
Ptot |
Total Power Dissipation |
900 |
mW |
|
Toper |
Operating Ambient Temperature |
0, + 70 |
|
|
Tstg |
Storage Temperature |
-55, + 150 |

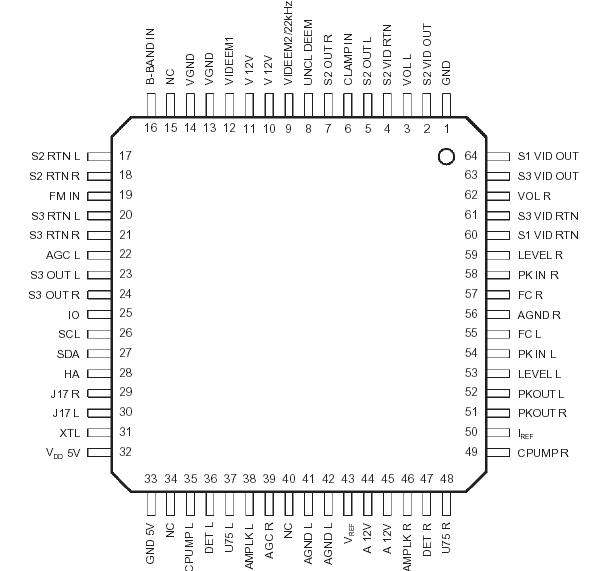

STV0056AF Connection Diagram
STV0056AF
PDF/DataSheet Download
- Datasheet: STV0056AF
- File Size: 229328 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
