STV2180A

Features: ·DUAL SWITCHED CAPACITOR DELAY LINE·3MHz CLOCK DERIVED FROM 6MHz VCO LOCKED BY THE BURST GATE PULSE ·SAMPLE AND HOLD CIRCUITS AND LOWPASS FILTERS TO SUPPRESS THE 3MHz CLOCK RESIDUAL ·CLAMPEDB-Y AND R-Y INPUTS ·OUTPUT BUFFERS ·ADJUSTMENT-FREE APPLICATION ·DIP14 PACKAGEPinoutSpecifications...

product image

STV2180A Picture
See larger image
SeekIC No. : 004508988 Detail

STV2180A: Features: ·DUAL SWITCHED CAPACITOR DELAY LINE·3MHz CLOCK DERIVED FROM 6MHz VCO LOCKED BY THE BURST GATE PULSE ·SAMPLE AND HOLD CIRCUITS AND LOWPASS FILTERS TO SUPPRESS THE 3MHz CLOCK RESIDUAL ·CLAMP...

STV2180A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV2180A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·DUAL SWITCHED CAPACITOR DELAY LINE
·3MHz CLOCK DERIVED FROM 6MHz VCO
   LOCKED BY THE BURST GATE PULSE
·SAMPLE AND HOLD CIRCUITS AND LOWPASS FILTERS TO SUPPRESS THE 3MHz CLOCK RESIDUAL
·CLAMPEDB-Y AND R-Y INPUTS
·OUTPUT BUFFERS
·ADJUSTMENT-FREE APPLICATION
·DIP14 PACKAGE


Pinout

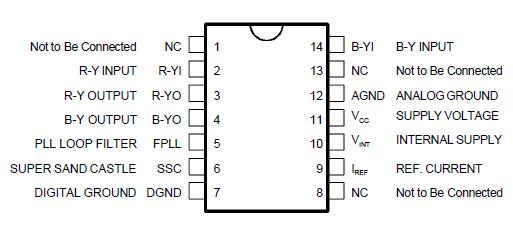

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VCC Supply Voltage (Pin 11)
11
V
TA Operating Ambiant Temperature
0 to 70
Tstg Storage Temperature -25 to +150
Rth(j-a) Junction-Ambiant Thermal Resistance Pd = 1W
90
/W



Description

The STV2180Ais an integratedbase band chroma delay line with one line delay, which has been designed to match chroma decoders with colour difference signal outputs (R-Y) and (B-Y).
