Part Number: STV2216









Description: The STV2216 is a fully bus controlled IC for TV luma, chroma and deflection processing.


Urgent Purchase

STV2216 General Description


The STV2216 is a fully bus controlled IC for TV luma, chroma and deflection processing.

STV2216 Maximum Ratings

Symbol Parameter
Value
Unit
VCC Supply Voltage (Pins 22-42) (VCC1(22) VCC2(42))
12
V
Toper Operating Temperature
0, +70
Tstg Storage Temperature
-55, +150

STV2216 Features

·I2C BUS CONTROL OF ALLFUNCTIONS
·INTEGRATEDFILTERS (TRAP, BANDPASS)
·INTEGRATEDLUMINANCE DELAYLINE
·NTSC CHROMA DEMODULATOR WITH AUTOMATIC FLESH TONE
·PALDEMODULATOR
·AUTOMATIC CUT-OFF CURRENT LOOP
·ONE RGB INPUT
·SVHS SWITCH
·TWO PLLs HORIZONTAL DEFLECTION
·VERTICAL COUNT DOWN
·XRAY PROTECTION
·BLACK STRETCH
·BLUE SCREEN VERYFEW EXTERNAL COMPONENTS

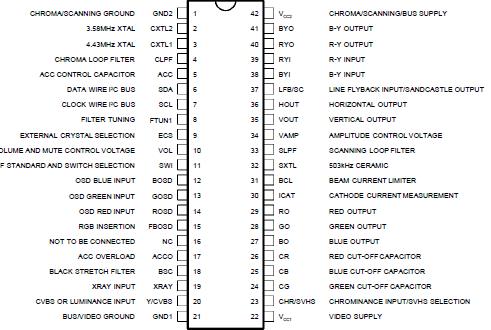

STV2216 Connection Diagram

STV2216 Connection Diagram

STV2216 datasheet
