STV6413

Features: I²C Bus Control Standby Mode with Interrupt Signal Output Video Section 3 CVBS Inputs, 2 CVBS Outputs 3 Y/C Inputs, 2 Y/C Outputs 6 dB Gain on all CVBS/Y and C Outputs Integrated 150 Buffers 2 RGB/FB Inputs, 1 Tri-state RGB/FB Output with 6 dB Adjustable Gain (from +3 dB to +9...

product image

STV6413 Picture
See larger image
SeekIC No. : 004509035 Detail

STV6413: Features: I²C Bus Control Standby Mode with Interrupt Signal Output Video Section 3 CVBS Inputs, 2 CVBS Outputs 3 Y/C Inputs, 2 Y/C Outputs 6 dB Gain on all CVBS/Y and C Outputs Integrated...

STV6413 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV6413
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

I²C Bus Control
Standby Mode with Interrupt Signal Output
Video Section
   3 CVBS Inputs, 2 CVBS Outputs
   3 Y/C Inputs, 2 Y/C Outputs
   6 dB Gain on all CVBS/Y and C Outputs
   Integrated 150 Buffers
   2 RGB/FB Inputs, 1 Tri-state RGB/FB Output with 6 dB Adjustable Gain (from +3 dB to +9 dB)
   Video Muting on all Outputs
   2 Slow Blanking Inputs/Outputs
   Sync Bottom Clamp on all CVBS/Y and RGB Inputs, Average Clamp on C Inputs
   Bandwidth: 15 MHz
   Crosstalk: 50 dB Minimum
Audio Section
    3 Stereo Inputs, 3 Stereo Outputs
   Stereo-to-Mono Sound Capability
   0/6/9 dB Selectable Gain on one Stereo Input
   Full Range Volume Control with Soft Control
   Audio Muting on all Outputs


Pinout

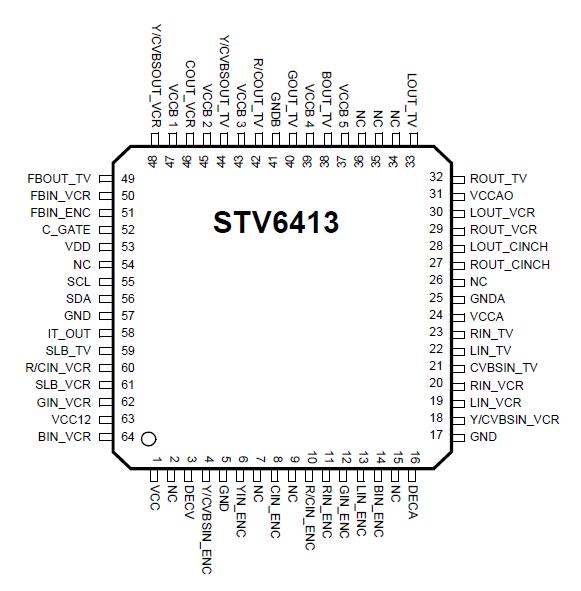

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCC12

 Supply voltage for Slow Blanking sections
13.2

V

VCCAO

 Supply voltage for Audio Drivers
13.2

V

VCCA
 Supply voltage for Digital Audio sections
10
V
VDD
 Supply voltage for Digital sections
6
V
VCC,VCCBI
 Supply voltage for Video sections
6
V
VIN
 Input Voltage at Pin
(in reference toGND)		 Audio pins
Video pins
Bus pins
Slow Blanking pins
0, VCCA
0, VCC or VCCBI
0, 5.5
0, VCC12
V
VESDC
 Maximum ESD Voltage allowed. (Human Body Model:
100 pF capacitor discharged through 1.5 kOhm serial resistor)
±4
kV
Toper
 Ambient Operating Temperature
0 to +70

Tstg

 Storage Temperature
-20 to +150




Description

The STV6413 is a highly integrated I²C buscontrolled audio and video switch matrix, optimized for use in digital set-top box applications. It provides the audio and video routings required in a two SCART set-top box design.

In a TQFP64 (10 x 10 mm) package, the STV6413 is compatible with the STV6412A (TQFP64 14 x 14 mm) used for designing boards with two levels of integration.
