STV7617D

Features: · 64/65 SELECTABLE OUTPUT PLASMA DISPLAY DRIVER· 100 V ABSOLUTE MAXIMUM SUPPLY· 5 V SUPPLY FOR LOGIC· 100/850 mA SOURCE/SINK OUTPUT· 700 mA SOURCE/SINK OUTPUT DIODE· 65-bit BIDIRECTIONAL SHIFT REGISTER (8 MHz)· HIGH IMPEDANCE OUTPUT CONTROL· BCD TECHNOLOGY· 100-PIN TQFP PACKAGE WITH INTE...

product image

STV7617D Picture
See larger image
SeekIC No. : 004509053 Detail

STV7617D: Features: · 64/65 SELECTABLE OUTPUT PLASMA DISPLAY DRIVER· 100 V ABSOLUTE MAXIMUM SUPPLY· 5 V SUPPLY FOR LOGIC· 100/850 mA SOURCE/SINK OUTPUT· 700 mA SOURCE/SINK OUTPUT DIODE· 65-bit BIDIRECTIONAL S...

STV7617D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV7617D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 64/65 SELECTABLE OUTPUT PLASMA DISPLAY DRIVER
· 100 V ABSOLUTE MAXIMUM SUPPLY
· 5 V SUPPLY FOR LOGIC
· 100/850 mA SOURCE/SINK OUTPUT
· 700 mA SOURCE/SINK OUTPUT DIODE
· 65-bit BIDIRECTIONAL SHIFT REGISTER (8 MHz)
· HIGH IMPEDANCE OUTPUT CONTROL
· BCD TECHNOLOGY
· 100-PIN TQFP PACKAGE WITH INTEGRATED HEATSINK


Pinout

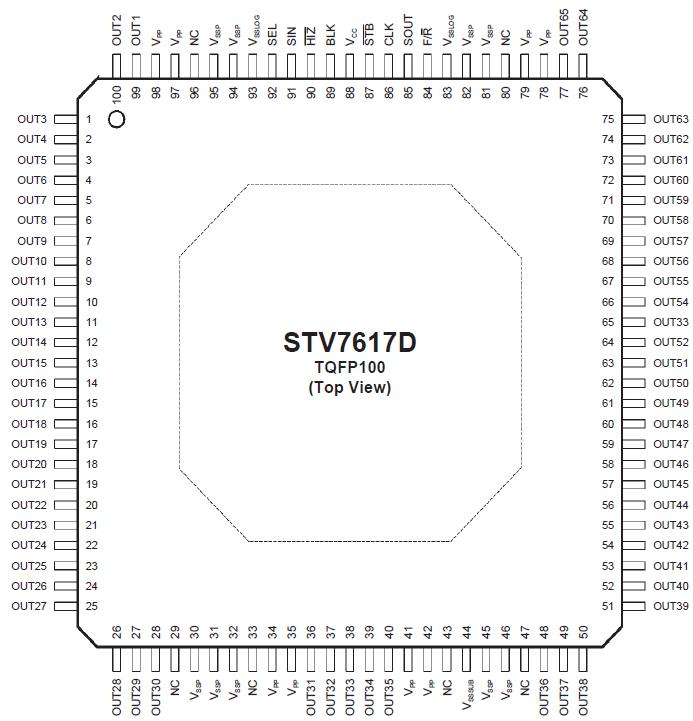

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC

Logic Supply (Pin 88)*
-0.3, +7
V
OUTi
 Output Pins (1 to 28, 36 to 40, 48 to 77, 99, 100)
-0.3, +100
V
VIN
 Logic Input Voltage (Pins 84, 86, 87, 89, 90, 91, 92)*
-0.3, VCC + 0.3
V
VOUT
 Logic Output Voltage (Pin 85)*
-0.3, VCC + 0.3
V
VPOUT
 Driver Output Voltage (scanning mode)
-0.3, +100
V
IPOUT
 Driver Output Current (1) (4)
-100, +1 A
mA
IDOUT
 Diode Output Current (3) (4)
±700
mA
Tjmax
 Junction Temperature
+150
°C
Toper
 Operating Temperature
-20, +85
°C
Tstg
 Storage Temperature
-20, +150
°C



Description

The STV7617 is a scan driver for Plasma Display Panel (PDP) implemented in ST's proprietary BCD technology. Using a 65-bit cascadable 8 MHz shift register, it drives 65 high current & high voltage outputs. The STV7617 can be configured either in 64 or 65 outputs depending on the SEL input Pin.

By serially connecting several STV7617, any vertical pixel definition can be performed. The STV7617 is supplied with a separated 90V power output supply and a 5 V logic supply. All command inputs are CMOS compatible. The STV7617 package is a 100-pin TQFP with integrated heatsink located on the bottom (STV7617D) or top (STV7617U) of the package. It is also available without heatsink (STV7617).
