Product Details

Description



Features:

· 96 OUTPUTS PLASMA DISPLAY DRIVER
· 100 V ABSOLUTE MAXIMUM SUPPLY
· 5 V SUPPLY FOR LOGIC
· 60/50 mA SOURCE/SINK OUTPUT MOS
· 60/50 mA SOURCE/SINK OUTPUT DIODE
· 6 bit CASCADABLE DATA BUS (20 MHz)
· BLANK, POLARITY CONTROL
· BCD TECHNOLOGY
· PACKAGING TQFP144 OR DICE

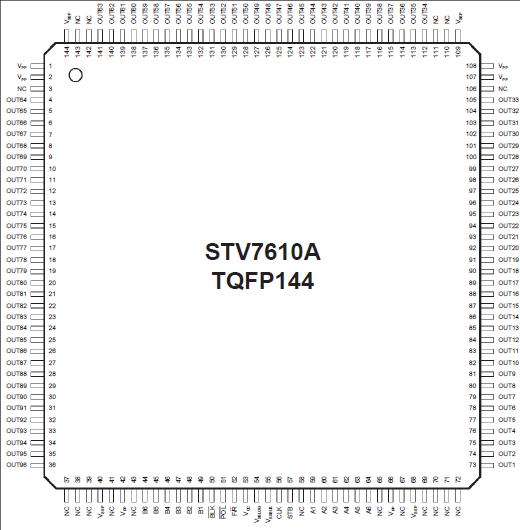

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC

Logic Supply Range (Pin 53)
-0.3, +7
V
OUTi
 Output Pins (4 to 36, 73 to 105, 112 to 141)
-0.3, +100
V
VIN
 Logic Input Voltage (Pins 50, 51, 52, 56, 57, 59 to 64)
-0.3, VCC + 0.3
V
VOUT
 Logic Output Voltage (Pin 44 to 49)
-0.3, VCC + 0.3
V
IPOUT
 Driver Output Current ( Note 2) ( Note 4)
-60/ +50
mA
IDOUT
 Diode Output Current ( Note 3) ( Note 4)
-50/+60
mA
Tj
 Junction Temperature
+150
°C
Toper
 Operating Temperature
-20, +85
°C
Tstg
 Storage Temperature
-50, +150
°C



Description

The STV7610A is a BCD data driver for Plasma Display Panel (PDP). Using a 6-bit wide cascadable data bus, it addresses 96 high current & high voltage outputs. By serially connecting several STV7610A, any horizontal pixel definition can be performed. The 20 MHz shift clock gives an equivalent 120 MHz shift register. The STV7610A is supplied with a separated 90 V power output supply and a 5 V logic supply. All command inputs are CMOS compatible.
