STV7618

Features:

` 96 Outputs Plasma Display Driver
` 90V Absolute Maximum Rating
` 3.3V / 5V Compatible Logic
` -40 / 30 mA Source / Sink Output MOS
` 3 or 6 Bit Data Bus (40 MHz)
` BCD Process
` Packaging Adapted to Customer's Request (DICE, COB, COF, TAB).

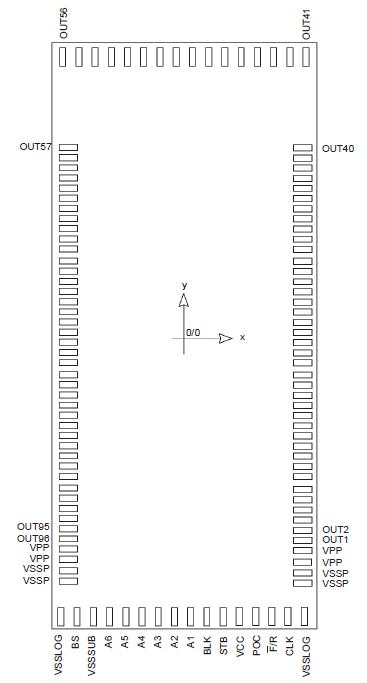

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vcc	Logic supply range	-0.3, +7	V
Vpp	Driver supply range	-0.3, +90	V
Vin	Logic input voltage range	-0.3, VCC + 0.3	V
Ipout	Driver Output Current ( Note 1) ( Note 3) ( Note 4)	-150 / +150	mA
Idout	Diode Output Current ( Note 2) ( Note 3) ( Note 4	-200 / +300	mA
Tjmax	Maximum junction temperature	125	°C
Tstg	Storage temperature range	-50, +150	°C
Toper	Operating ambient temperature	-20, +85	°C
Vout	Output power voltage range	-0.3, +90	V

Description

STV7618 is a data driver for Plasma Display Panel (PDP) designed in the ST proprietary BCD high voltage technology. Using a 3 or 6 bit wide data bus, it can control 96 high current & high voltage outputs. The STV7618 is supplied with a separated 70V power output supply and a 5V logic supply. All command inputs are CMOS and 3.3V logic levels compatible.
