STV7697B

Features: · 64-output PDP Scan Driver· 170V Absolute Maximum Rating· 5V Supply for Logic· -200/750 mA Peak Output Current· 1 A Source / Sink Output Diode· 64-bit Shift Register (8 MHz)· Blank Control· Complementary Output Control· BCD Technology· 100 Pin-TQFP PackagePinoutSpecifications Sym...

product image

STV7697B Picture
See larger image
SeekIC No. : 004509060 Detail

STV7697B: Features: · 64-output PDP Scan Driver· 170V Absolute Maximum Rating· 5V Supply for Logic· -200/750 mA Peak Output Current· 1 A Source / Sink Output Diode· 64-bit Shift Register (8 MHz)· Blank Contro...

STV7697B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV7697B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 64-output PDP Scan Driver
· 170V Absolute Maximum Rating
· 5V Supply for Logic
· -200/750 mA Peak Output Current
· 1 A Source / Sink Output Diode
· 64-bit Shift Register (8 MHz)
· Blank Control
· Complementary Output Control
· BCD Technology
· 100 Pin-TQFP Package


Pinout

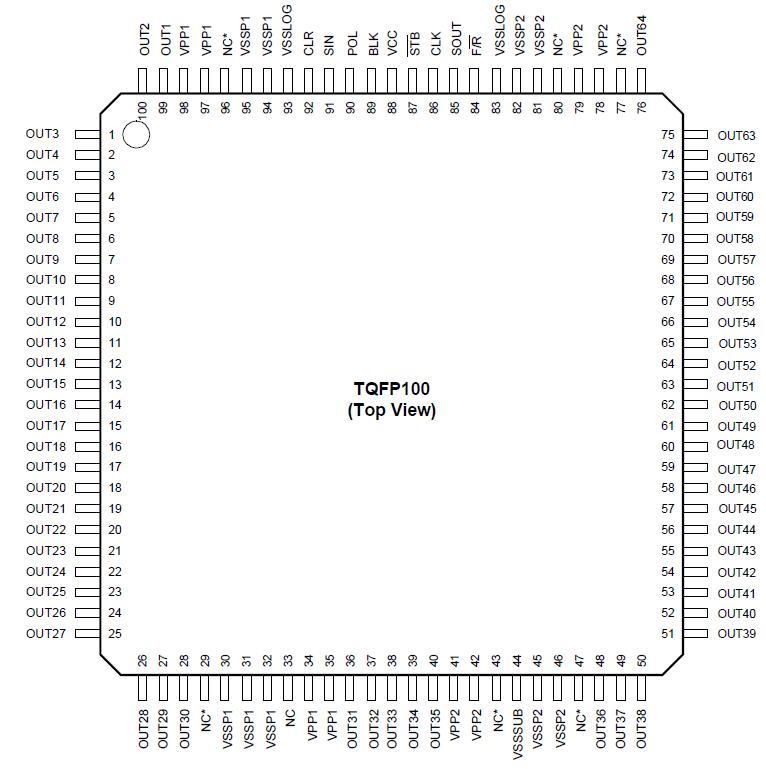

Connection Diagram


Specifications

Symbol
Parameter
Value
Units
VCC

Logic Supply
-0.3, +7
V
VPP
 Driver Supply
-0.3, +170
V
VIN
 Logic Input Voltage
-0.3, VCC + 0.3
V
VOUT
 Logic Output Voltage
-0.3, VCC + 0.3
V
VPOUT
 Driver Output Voltage (Scanning mode)
-0.3, VPP
V
IPOUT
 Driver Output Current (See Note 1 and Note 3)
-250, +800
mA
IDOUT
 Diode Output Current (See Note 2 and Note 3)
±1.2
A
IL
 Latch-up Susceptibility
±200
mA
TJMAX
 Junction Temperature
+125
°C
TOPERr
 Operating Temperature
-20, +85
°C
TSTG
 Storage Temperature
-50, +150
°C



Description

The STV7697B is a scan driver for plasma display panels (PDP) implemented in ST's proprietary BCD (Bi-polar CMOS DMOS) technology. Using a 64-bit cascadable 8-MHz shift register, it drives 64 highcurrent and high-voltage outputs.

By connecting several STV7697B devices in series,any vertical pixel definition can be performed. The STV7697B is supplied with separate 160V power output and 5 V logic supplies. All command inputs are CMOS compatible.

The STV7697B package is a 100-pin TQFP.
