STV7801S

Features: High Voltage - Low Power Pulse Generator 100V Absolute Maximum Supply High Load Drive Capability (25nF) 5V Compatible Input Logic Very Low Stand-by Current Power Recovery High Current (±7A) Totem Pole High Output Current (±5A) Built-in Timing Control & Thermal Protection BCD Technolo...

product image

STV7801S Picture
See larger image
SeekIC No. : 004509064 Detail

STV7801S: Features: High Voltage - Low Power Pulse Generator 100V Absolute Maximum Supply High Load Drive Capability (25nF) 5V Compatible Input Logic Very Low Stand-by Current Power Recovery High Current (±7A...

STV7801S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV7801S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 High Voltage - Low Power Pulse Generator
100V Absolute Maximum Supply
High Load Drive Capability (25nF)
5V Compatible Input Logic
Very Low Stand-by Current
Power Recovery High Current (±7A)
Totem Pole High Output Current (±5A)
Built-in Timing Control & Thermal Protection
BCD Technology
Packaging: Multiwatt 15, Power SO20


Pinout

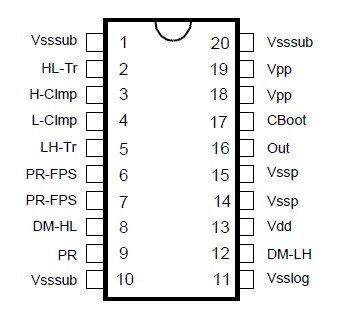

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vdd Logic Supply Range -0.3,+14 V
Vpp Driver Supply Range -0.3 , + 100 V
VIn Logic Input Voltage Range -0.3, Vdd+0.3
Ih-Out Main Switch High Side Current -5 A
Il-Out Main Switch Low Side Current 5 A
Ipr-Hi Power Recovery Current (note1) -7 A
Ipr-Lo Power Recovery current (note1) 7 A
VCBoot-Vout Difference between Boot voltage and output voltage 14 V
Tjmax Maximum Junction Temperature (note2)

 Internally
protected
Top Operating Temperature Range -20, +70
Tstg Storage Temperature Range -50, +150

Note 1 Peak current as defined in Figure 1 on page 9
Note 2 These parameters are measured during ST's internal qualification which includes temperature characterization
on standard and corner batches of the process. These parameters are not tested on the parts.




Description

STV7801S is a monolithic integrated circuit implemented in STMicroelectronics BCD proprietary technology designed as a switched power supply generator for data drivers in a Plasma Display Panel (P.D.P.) application.

The high load drive capability of the STV7801S reduces the number of devices necessary to drive a complete PDP (4 to 6 devices for a 42" VGA 16/9 PDP monitor).

The STV7801S high current drive capability provides a high power recovery efficiency coefficient superior to 85% on constant capacitive load.To limit the number of external components, the device integrates level shifters driven with 5V CMOS compatible levels.

To increase the reliability of the system, the STV7801S integrates several protections such as output over-voltage, over-temperature, power-ON protection.
