Product Details

Description

Features:

Power Amplifier
Thermal Protection
Output Current up to 3.6App
Flyback Voltage up to 100V (on Pin 5)
Suitable for DC Coupling Application
External Flyback Supply

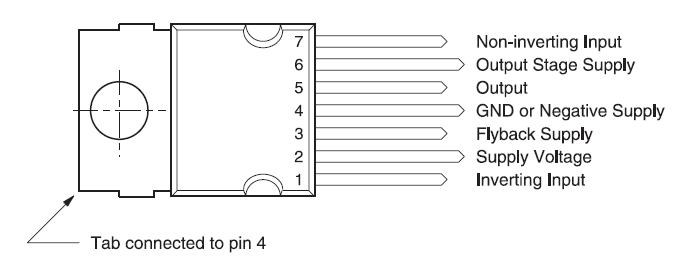

Pinout

Connection Diagram

Description

Designed for monitors and high performance TVs,the STV8179F vertical deflection booster can handle flyback voltages of up to 100V. In addition, it is possible to have a flyback voltage which is more than double that of the supply (Pin 2). This allows decreasing power consumption or decreasing the flyback time for a given supply voltage.

The STV8179F operates with supplies of up to 42V and outputs up to 3.6APP to drive the yoke.

The STV8179F is offered in a HEPTAWATT package.
