STV8203

Features: ` PERFORMS FM MONO, FM 2 CARRIERS AND NICAMRECEPTION ` B/D/G/H/I/K/K1/K2/L/L'` UP TO 500kHz DEVIATIONFMDEMODULATOR` ALL PRE AND POST-PROCESSING INTEGRATEDFILTERS, ALIGNMENTFREE` STANDARD RECOGNITION FLAG .SINGLEQUARTZ CRYSTAL ` I2C BUS CONTROLLED ` AM AND DOUBLE SCARTAUDIO MATRIX ` STAND...

product image

STV8203 Picture
See larger image
SeekIC No. : 004509072 Detail

STV8203: Features: ` PERFORMS FM MONO, FM 2 CARRIERS AND NICAMRECEPTION ` B/D/G/H/I/K/K1/K2/L/L'` UP TO 500kHz DEVIATIONFMDEMODULATOR` ALL PRE AND POST-PROCESSING INTEGRATEDFILTERS, ALIGNMENTFREE` STANDARD R...

STV8203 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV8203
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` PERFORMS FM MONO, FM 2 CARRIERS AND NICAMRECEPTION
` B/D/G/H/I/K/K1/K2/L/L'
` UP TO 500kHz DEVIATIONFMDEMODULATOR
` ALL PRE AND POST-PROCESSING INTEGRATEDFILTERS, ALIGNMENTFREE
` STANDARD RECOGNITION FLAG .SINGLEQUARTZ CRYSTAL
` I2C BUS CONTROLLED
` AM AND DOUBLE SCARTAUDIO MATRIX
` STAND-BYWITH THRU MODE
` SINGLE BIT DACS
` EASY IMPLEMENTATION OF AUTOSTAN DARDMODE
` ADVANCED OPERATING MODE FOR FULL CUSTOMIZATION
` SIF AGC WITH WIDERANGE


Pinout

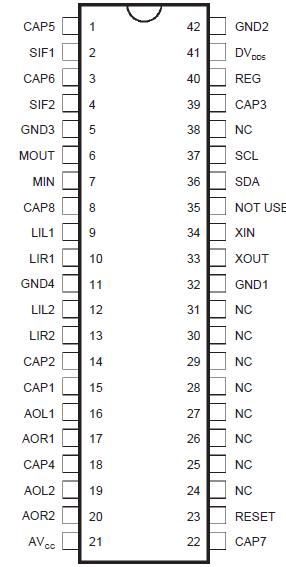

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
AVDD5
 Analog Supply Voltage
7
V
DVDD5
 Digital Supply Voltage
7
V
AVCC
 Scart Interface Supply Voltage
9.5
V
Ptot
 Power Total Dissipation
0.8
W
Toper
 Operating Temperature
0, +70
Tstg
 Storage Temperature
-20, +150



Description

The STV8203 provides all the necessary circuitry for demodulation of all Nicam and German stereo audio transmission. It is very suitable for TV applications as well as for VCR, Personal Computer or Set Top Box applications. Different transmission standardsare automaticallydetectedand demodulated without user intervention. The recovered audio signals can be made available in analog form. More, the STV8203 integrates an audio matrix with a THRU mode when the IC is in stand-by. Very flexible applications are possible thanks to smart I2C program modes and large choice of appropriate audio processing ICs.
