SW-437

Features: • Low Cost Plastic SOT-363 Package• Low Insertion Loss <0.3dB @ 900 MHz• Low Power Consumption <15µA @ +2.7V• Positive or Negative 2.5 to 8 V ControlPinoutSpecifications Parameter Absolute Maximum1 Max. Input Power (0.5 - 3.0 GHz)3 V Con...

product image

SW-437 Picture
See larger image
SeekIC No. : 004509661 Detail

SW-437: Features: • Low Cost Plastic SOT-363 Package• Low Insertion Loss <0.3dB @ 900 MHz• Low Power Consumption <15µA @ +2.7V• Positive or Negative 2.5 to 8 V ControlPin...

SW-437 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SW-437
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Cost Plastic SOT-363 Package
• Low Insertion Loss <0.3dB @ 900 MHz
• Low Power Consumption <15µA @ +2.7V
• Positive or Negative 2.5 to 8 V Control

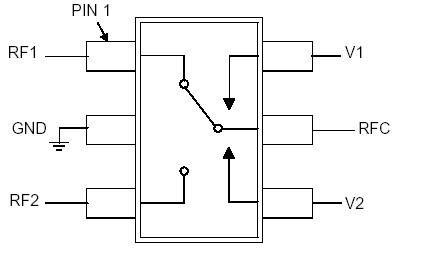

Pinout

Connection Diagram


Specifications

Parameter
Absolute Maximum1

Max. Input Power (0.5 - 3.0 GHz)
3 V Control
5 V Control
Operating Voltage
Operating Temperature
Storage Temperature

+30 dBm
+33 dBm
+8.5 Volts
-40°C to +85°C
-65°C to +150°C

1. Exceeding any one or combination of these limits may cause permanent damage.


Description

M/A-COM's SW-437 is a GaAs monolithic switch in a low cost SOT-363 surface mount plastic package. The SW-437 is ideally suited for applications where very low power consumption, low insertion loss, very small size and low cost are required. Typical application is in dual band systems where switching between small signal components is required such as filter banks, single band LNA's, converters etc. The SW-437 can be used in applications up to 0.25 Watts in systems such as cellular, PCS, DCS1800, GSM, CDMA, W-CDMA and other analog/digital wireless communications systems.

The SW-437 is fabricated using a mature 0.8 micron GaAs MESFET process. The process features full passivation for increased performance and reliability.
