Features:

· 3.3V and 5V power supply option
· 300ps typical propagation delay
· Differential LVPECL outputs
· ICC Max 25mA
· PNP LVTTL inputs for minimal loading
· Flow-through pinouts
· Q outputs will default HIGH with inputs open
· Max. frequency range 800MHz
· Available in 8-pin MSOP and SOIC package


Pinout

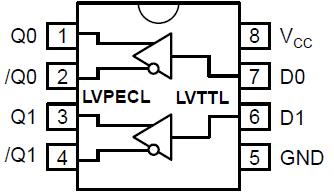

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Power Supply Voltage
0.5 to +7.0
V
VI
 TTL Input Voltage
0.5 to VCC
V
II
 TTL Input Current
30 to +5.0
mA
IO
 PECL Output Current
- Continuous
- Surge
50
100
mA
Tstore
 Storage Temperature
-65 to +150
TA
 Operating Temperature
40 to +85



Description

The SY100EPT22V is a dual TTL/CMOS to differential PECL translator. Capable of running from a 3.3 or 5V supply, the part can be used in either LVTTL/LVCMOS/ LVPECL or TTL/CMOS/PECL systems.

The SY100EPT22V only requires a single positive supply of 3.3V or 5V - no negative supply is required.

The tiny 8-pin MSOP package and the low skew, dual gate design of the EPT22V makes SY100EPT22V ideal for those applications where space, performance, and low power are at a premium.
