SY100S307

Features: `Max. propagation delay of 1000ps`IEE min. of 58mA`Extended supply voltage option: VEE = 4.2V to 5.5V`Voltage and temperature compensation for improved noise immunity`Internal 75KΩ input pull-down resistors`50% faster than Fairchild 300K at lower power`Function and pinout compatibl...

product image

SY100S307 Picture
See larger image
SeekIC No. : 004509977 Detail

SY100S307: Features: `Max. propagation delay of 1000ps`IEE min. of 58mA`Extended supply voltage option: VEE = 4.2V to 5.5V`Voltage and temperature compensation for improved noise immunity`Internal 75KΩ i...

SY100S307 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY100S307
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Max. propagation delay of 1000ps
`IEE min. of 58mA
`Extended supply voltage option: VEE = 4.2V to 5.5V
`Voltage and temperature compensation for improved noise immunity
`Internal 75KΩ input pull-down resistors
`50% faster than Fairchild 300K at lower power
`Function and pinout compatible with Fairchild F100K
`Available in 24-pin CERPACK and 28-pin PLCC packages


Pinout

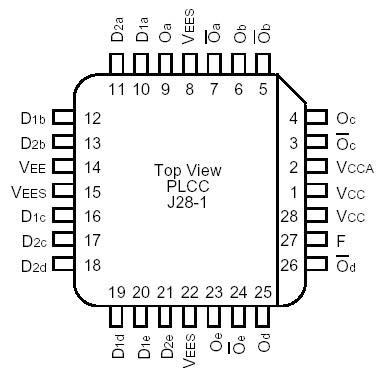

Connection Diagram


Description

The SY100S307 is an ultra-fast quint exclusive-OR/NOR gate designed for use in high-performance ECL systems. A function output that is the wire-OR result of the exclusive-OR outputs is also available. The inputs on the device have 75KΩ pull-down resistors.
