SY10E193

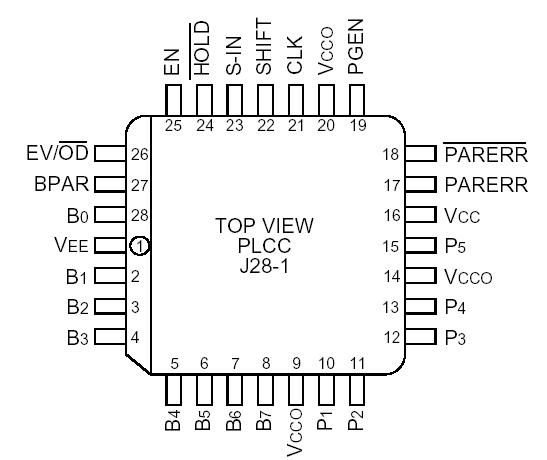

The SY10E193/100E193 are error detection and correction (EDAC) circuits designed for use in new, high- performance ECL systems. The SY10E193 generates hamming parity codes on an 8-bit word as shown in the block diagram. The P5 output gives the parity of the whole word. PGEN provides word parity after Odd/Even parity control and gating with the BPAR input. PGEN also feeds into a 1-bit shiftable register for use as part of a scan ring.

The combinatorial part of the SY10E193 generates the same code pattern as the Motorola MC10193. Used in conjunction with 12-bit parity generators, such as the E160, a SECDED (single error correction, double error detection) error system can be designed for a multiple of an 8-bit word.
