SY10E212

Features: `Scannable version E112 driver`Extended 100E VEE range of 4.2V to 5.5V`1025ps max. CLK to Output`Dual differential outputs`Master Reset`Internal 75K input pull-down resistors`Fully compatible with industry standard 10KH, 100K ECL levels`Fully compatible with Motorola MC10E/100E212`Availa...

product image

SY10E212 Picture
See larger image
SeekIC No. : 004510046 Detail

SY10E212: Features: `Scannable version E112 driver`Extended 100E VEE range of 4.2V to 5.5V`1025ps max. CLK to Output`Dual differential outputs`Master Reset`Internal 75K input pull-down resistors`Fully compati...

SY10E212 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY10E212
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Scannable version E112 driver
`Extended 100E VEE range of 4.2V to 5.5V
`1025ps max. CLK to Output
`Dual differential outputs
`Master Reset
`Internal 75K input pull-down resistors
`Fully compatible with industry standard 10KH, 100K ECL levels
`Fully compatible with Motorola MC10E/100E212
`Available in 28-pin PLCC package


Pinout

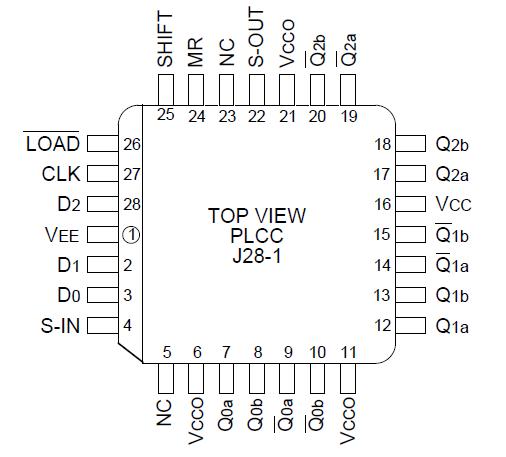

Connection Diagram


Description

The SY10E212/100E212 are scannable registered ECL drivers typically used as fan-out memory address drivers for ECL cache driving. In a VLSI array-based CPU design, use of the SY10E212 allows the user to conserve array output cell functionality and also output pins.

The input shift register of SY10E212  is designed with control logic which greatly facilitates its use in boundary scan applications.
