SY10E416

Features: `Differential D and Q`Extended 100E VEE range of 4.2V to 5.5V`VBB output for single-ended use`600ps max. propagation delay`High frequency outputs`2 stages of gain`Internal 75KΩ input pull-down resistors`Fully compatible with Motorola 10E/100E416`Available in 28-pin PLCC packagePino...

product image

SY10E416 Picture
See larger image
SeekIC No. : 004510052 Detail

SY10E416: Features: `Differential D and Q`Extended 100E VEE range of 4.2V to 5.5V`VBB output for single-ended use`600ps max. propagation delay`High frequency outputs`2 stages of gain`Internal 75KΩ input...

SY10E416 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY10E416
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Differential D and Q
`Extended 100E VEE range of 4.2V to 5.5V
`VBB output for single-ended use
`600ps max. propagation delay
`High frequency outputs
`2 stages of gain
`Internal 75KΩ input pull-down resistors
`Fully compatible with Motorola 10E/100E416
`Available in 28-pin PLCC package

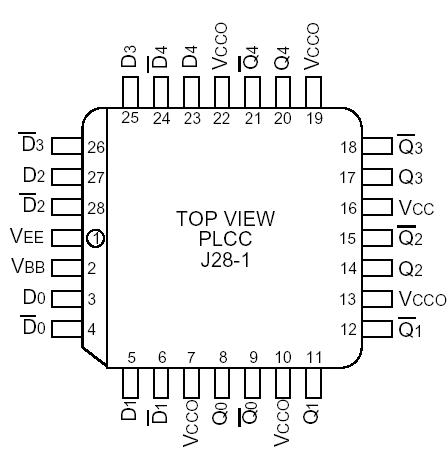

Pinout

Connection Diagram


Description

The SY10E416/100E416 are 5-bit differential line receiving devices. The 2.0GHz of bandwidth provided by the high frequency outputs make the devices ideal for buffering of very high speed oscillators.

A VBB pin of SY10E416 is available to AC couple an input signal to the devices.

The SY10E416's design incorporates two stages of gain internal to the devices, making them an excellent choice for use in high bandwidth amplifier applications.
