SY10EP08V

Features: · 3.3V or 5V power supply options· Maximum frequency > 3GHz typical· 200ps typical propagation delay· Internal input resistors: pulldown on D, pulldown and pullup on /D· Q output will default LOW with inputs open or at VEE· Transistor count: 152· Available in 8-Pin MSOP and SOI...

product image

SY10EP08V Picture
See larger image
SeekIC No. : 004510091 Detail

SY10EP08V: Features: · 3.3V or 5V power supply options· Maximum frequency > 3GHz typical· 200ps typical propagation delay· Internal input resistors: pulldown on D, pulldown and pullup on /D· Q output w...

SY10EP08V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY10EP08V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 3.3V or 5V power supply options
· Maximum frequency > 3GHz typical
· 200ps typical propagation delay
· Internal input resistors: pulldown on D, pulldown
   and pullup on /D
· Q output will default LOW with inputs open or at VEE
· Transistor count: 152
· Available in 8-Pin MSOP and SOIC packages

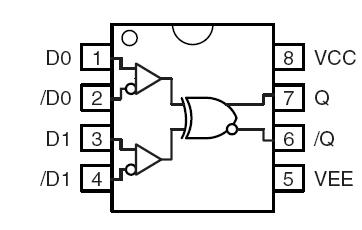

Pinout

Connection Diagram


Specifications

Symbol Rating Value Unit
VCC-VEE Power Supply Voltage 6V V
VIN Input Voltage (VCC = 0V, VIN not more negative than VEE)
Input Voltage (VEE = 0V, VIN not more positive than VCC)		 6.0 to 0
+6.0 to 0		 V
V
IOUT Output Current Continuous
Surge		 50
100		 mA
TLEAD Lead Temperature (soldering, 20sec.) +260 °C
TA Operating Temperature Range 40 to +85 °C
Tstore Storage Temperature Range 65 to +150 °C
JA Package Thermal Resistance Still-Air (SOIC)
(Junction-to-Ambient) 500lfpm (SOIC)
Still-Air (MSOP)
500lfpm (MSOP)		 160
109
206
155		 °C/W
°C/W
JC Package Thermal Resistance (SOIC)
(Junction-to-Case) (MSOP)		 39
39		 °C/W
Note 1. Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is not
implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum ratlng conditions
for extended periods may affect device reliability.


Description

The SY10EP08V is a 2-input differential XOR/XNOR gate. The EP08V is ideal for applications requiring the fastest AC performance available.
