SY10H600

Features: · 9-bit ideal for byte-parity applications· Flow-through configuration· Extra TTL and ECL power/ground pins to minimize switching noise· ECL and TTL enable inputs· Dual supply· 3.5ns max. D to Q· PNP TTL inputs for low loading· Choice of ECL compatibility: MECL 10KH (10Hxxx) or 100K (100...

product image

SY10H600 Picture
See larger image
SeekIC No. : 004510100 Detail

SY10H600: Features: · 9-bit ideal for byte-parity applications· Flow-through configuration· Extra TTL and ECL power/ground pins to minimize switching noise· ECL and TTL enable inputs· Dual supply· 3.5ns max. ...

SY10H600 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY10H600
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 9-bit ideal for byte-parity applications
· Flow-through configuration
· Extra TTL and ECL power/ground pins to minimize switching noise
· ECL and TTL enable inputs
· Dual supply
· 3.5ns max. D to Q
· PNP TTL inputs for low loading
· Choice of ECL compatibility: MECL 10KH (10Hxxx) or 100K (100Hxxx)
· Fully compatible with Motorola MC10H/100H600
· Available in 28-pin PLCC package


Pinout

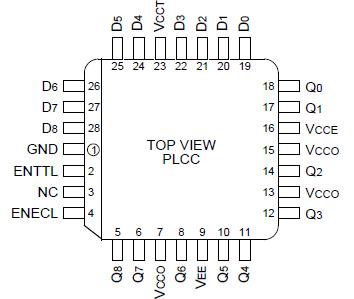

Connection Diagram


Description

The SY10H600/100H600 are 9-bit, dual supply TTL-to-ECL translators. Devices in the Micrel-Synergy 9-bit translator series utilize the 28-lead PLCC for optimal power pinning, signal flow-through and electrical performance.

The SY10H600 features both ECL and TTL logic enable controls for maximum flexibility.

The 10H version is compatible with MECL 10KH ECL logic levels. The SY10H600 version is compatible with 100K levels.
