SY10H646L

Features: · 3.3V power supply· PECL/TTL-to-TTL version of popular ECLinPS E111AE/LE· Guaranteed low skew specification· Three-state enable· Differential internal design· VBB output for single-ended operation· Extra TTL and ECL power/ground pins· Choice of ECL compatibility: 10K or 100K· Matched hi...

product image

SY10H646L Picture
See larger image
SeekIC No. : 004510108 Detail

SY10H646L: Features: · 3.3V power supply· PECL/TTL-to-TTL version of popular ECLinPS E111AE/LE· Guaranteed low skew specification· Three-state enable· Differential internal design· VBB output for single-ended ...

SY10H646L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY10H646L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 3.3V power supply
· PECL/TTL-to-TTL version of popular ECLinPS E111AE/LE
· Guaranteed low skew specification
· Three-state enable
· Differential internal design
· VBB output for single-ended operation
· Extra TTL and ECL power/ground pins
· Choice of ECL compatibility: 10K or 100K
· Matched high and low output impedance
· Available in 28-pin PLCC package



Pinout

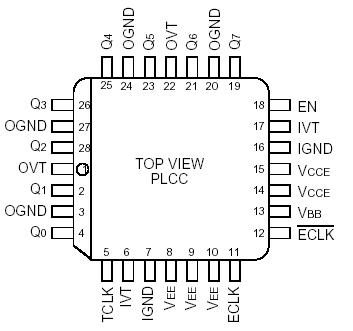

Connection Diagram


Specifications

Symbol

Rating

Value

Unit

VE (ECL)
VT (TTL)

Power SupplyVoltage

0.5 to +7.0
0.5 to +7.0

V

VI (ECL)
VI (TTL)

Input Voltage

0.0 to VEE
0.5 to VCC

V

VOUT (TTL)

Disabled 3-State Output

0.0 to VCCT

V

IOUT (ECL)

Output Current
- Continuous
- Surge

50
100

mA

Tstore

Storage Temperature

65 to +150

oC

TA

Operating Temperature

0 to +85

oC




Description

The SY10H646L/100H646L are single supply, low skew translating 1:8 clock drivers. Devices in the Micrel- Synergy H600 translator series utilize the 28-lead PLCC for optimal power pinning, signal flow-through and electrical performance. The single supply SY10H646L is similar to the HA643 which is a dual supply 1:8 version of the same function. The SY10H646L feature a 24mA TTL output stage, with AC performance specified into a 20pF load capacitance.
The SY10H646L version is compatible with 10K ECL logic levels. The 100H version is compatible with 100K levels.
