Features:

• Accepts a high-speed input and provides a precision
÷3 and ÷5 sub-rate, LVPECL output
• Fail-Safe Input
Prevents oscillations when input is invalid
• Guaranteed AC performance over temperature and
supply voltage:
DC-to >1.0GHz throughput
< 1500ps Propagation Delay (In-to-Q)
< 270ps Rise/Fall times
• Ultra-low jitter design:
<1psRMS random jitter
<1psRMS cycle-to-cycle jitter
<10psPP total jitter (clock)
<0.7psRMS MUX crosstalk induced jitter
• Unique patented internal termination and VT pin
accepts DC- and AC-coupled inputs (CML, PECL, LVDS)
• Wide input voltage range VCC to GND
• 800mV LVPECL output
• 46% to 54% Duty Cycle(÷ 3)
• 47% to 53% Duty Cycle(÷ 5)
• 2.5V ±5% or 3.3V ±10% supply voltage
• -40°C to +85°C industrial temperature range
• Available in 16-pin (3mm x 3mm) MLF® package




Application

• Fail-safe clock protection

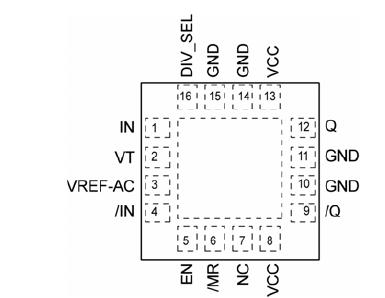

Pinout

Connection Diagram




Specifications

Supply Voltage (VCC) ..........................0.5V to +4.0V
Input Voltage (VIN) ................................0.5V to VCC
LVPECL Output Current (IOUT)....................................
Continuous ................................................. 50mA
Surge......................................................... 100mA
Current (VT)
Source or sink current on VT pin.....................±100mA
Input Current
Source or sink current on (IN, /IN) .................. ±50mA
Current (VREF-AC)
Source/Sink Current on VREF-AC(4)................. ±0.5mA
Maximum Operating Junction Temperature........125°C
Lead Temperature (soldering, 20 sec.) .............+260°C
Storage Temperature (Ts).......................65°C to 150°




Description

The SY89228U is a precision, low jitter 1GHz ÷3, ÷5 clock divider with an LVPECL output. A unique Fail- Safe Input (FSI) protection prevents metastable output conditions when the input clock voltage swing drops significantly below 100mV or input is removed. The differential input includes Micrel's unique, 3-pin internal termination architecture that allows the input to interface to any differential signal (AC- or DCcoupled) as small as 100mV (200mVPP) without any level shifting or termination resistor networks in the signal path. The outputs are 800mV, 100Kcompatible LVPECL with fast rise/fall times guaranteed to be less than 270ps.

The SY89228U operates from a 2.5V ±5% or 3.3V ±10% supply and is guaranteed over the full industrial temperature range of 40°C to +85°C. The SY89228U is part of Micrel's high-speed, Precision Edge® product line.All support documentation can be found on Micrel's web site at: www.micrel.com.
