SY89430V

Features: 5V and 3.3V power supply options 50MHz to 950MHz differential PECL outputs ±25ps peak-to-peak output jitter Minimal frequency over-shoot Synthesized architecture Serial 3 wire interface Parallel interface for power-on Internal quartz reference oscillator driven by quartz crystal Externa...

product image

SY89430V Picture
See larger image
SeekIC No. : 004510340 Detail

SY89430V: Features: 5V and 3.3V power supply options 50MHz to 950MHz differential PECL outputs ±25ps peak-to-peak output jitter Minimal frequency over-shoot Synthesized architecture Serial 3 wire interface P...

SY89430V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY89430V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V and 3.3V power supply options
50MHz to 950MHz differential PECL outputs
±25ps peak-to-peak output jitter
Minimal frequency over-shoot
Synthesized architecture
Serial 3 wire interface
Parallel interface for power-on
Internal quartz reference oscillator driven by quartz crystal
External loop filter optimizes performance/cost
Applications note (AN-07) for ease of design-ins
Available in 28-pin PLCC and SOIC packages




Application

Workstations
Advanced communications
High end consumer
High-performance computing
RISC CPU clock
Graphics pixel clock
Test equipment
Other high-performance processor-based applications




Pinout

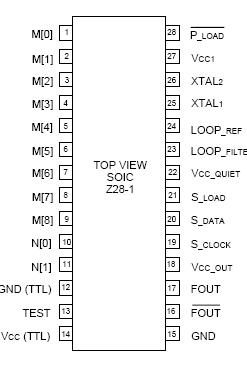

Connection Diagram




Specifications

Symbol Parameter Value Unit
VCC Power Supply Voltage 0.5 to +7.0 V
VI Input Voltage 0.5 to +7.0 V
IOUT Output Source
- Continuous
- Surge		 50
100		 mA
Tstore Storage Temperature 65 to +150 °C
TA Operating Temperature 0 to +75 °C





Description

The SY89430V is a general purpose, synthesized clock source targeting applications that require both serial and parallel interfaces. Its internal VCO will operate over a range of frequencies from 400MHz to 950MHz. The differential PECL output of SY89430V can be configured to be the VCO frequency divided by 1, 2, 4 or 8. With the output configured to divide the VCO frequency by 2, and with a 16MHz external quartz crystal used to provide the reference frequency, the output frequency can be specified in 1MHz steps.
