Product Details

Description



Features:

· TrenchFET® Power MOSFET: 1.8-V Rated
· Ultra Low On-Resistance


Application

· Load Switch
· PA Switch

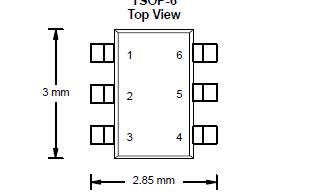

Pinout

Connection Diagram


Specifications

Parameter Symbol 5 secs Steady State Unit
Drain-Source Voltage VDS -12 V
Gate-Source Voltage VGS ±8
Continuous Drain Current (TJ = 150)a TA = 25 ID -6.0 -4.5 A
TA = 85 -4.3 -3.3
Pulsed Drain Currenta IDM -20
Continuous Source Current (Diode Conduction)a IS -1.7 -0.9
Maximum Power Dissipationa TA = 25 PD 2.0 1.1 W
TA = 85 1.0 0.6
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 150
