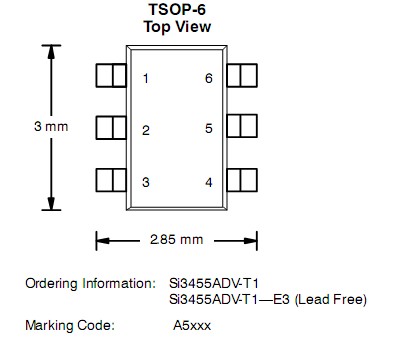

PinoutSpecifications Parameter Symbol 5 secs Steady State Unit Drain-Source Voltage VDS −30 V Gate-Source Voltage VGS ±20 Continuous Drain Current(TJ= 150 )a TA= 25 ID −3.5 −2.7 A TA= 70 −2.8 −2.1 Pul...
Si3455ADV: PinoutSpecifications Parameter Symbol 5 secs Steady State Unit Drain-Source Voltage VDS −30 V Gate-Source Voltage VGS ±20 Continuous Drain Current(TJ= ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter |
Symbol |
5 secs |
Steady State |
Unit | |
Drain-Source Voltage |
VDS |
−30 |
V | ||
Gate-Source Voltage |
VGS |
±20 | |||
Continuous Drain Current(TJ= 150 )a |
TA= 25 |
ID
|
−3.5 |
−2.7 |
A |
TA= 70 |
−2.8 |
−2.1 | |||
Pulsed Drain Current (10s Pulse Width) |
IDM |
-20 | |||
Continuous Source Current (Diode Conduction)a |
IS |
-1.7 |
−0.95 | ||
Maximum Power Dissipationa | TA= 25 |
PD |
2.0 |
1.14 |
W |
TA= 70 |
1.3 |
0.73 | |||
Operating Junction and Storage Temperature Range |
TJ, Tstg |
−55 to 150 |
