Si4136

Features: ` Dual-Band RF Synthesizers RF1: 2300 MHz to 2500 MHz RF2: 2025 MHz to 2300 MHz` IF Synthesizer 62.5 MHz to 1000 MHz` Integrated VCOs, Loop Filters, Varactors, and Resonators` Minimal External Components Required` Low Phase Noise` 5 A Standby Current` 25.7 mA Typical Supply Current...

product image

Si4136 Picture
See larger image
SeekIC No. : 004490227 Detail

Si4136: Features: ` Dual-Band RF Synthesizers RF1: 2300 MHz to 2500 MHz RF2: 2025 MHz to 2300 MHz` IF Synthesizer 62.5 MHz to 1000 MHz` Integrated VCOs, Loop Filters, Varactors, and Resonators` Minima...

Si4136 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si4136
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Dual-Band RF Synthesizers
    " RF1: 2300 MHz to 2500 MHz
    " RF2: 2025 MHz to 2300 MHz
` IF Synthesizer
    " 62.5 MHz to 1000 MHz
` Integrated VCOs, Loop Filters, Varactors, and Resonators
` Minimal External Components Required
` Low Phase Noise
` 5 A Standby Current
` 25.7 mA Typical Supply Current
` 3.0 V to 3.6 V Operation
` Package: 24-pin TSSOP


Application

· ISM Band Communications
· Wireless LAN and WAN
· Dual-Band Communications


Pinout

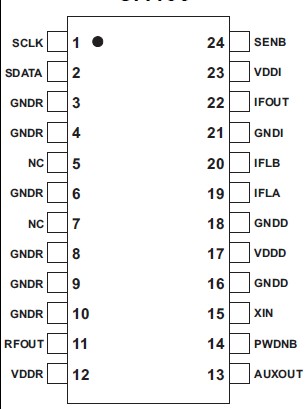

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
DC Supply Voltage
VDD
0.5 to 4.0
V
Input Current3
IIN
±10
mA
Input Voltage3
VIN
0.3 to VDD+0.3
V
Storage Temperature Range
TSTG
55 to 150
Notes:
1. Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional operation should be restricted to the conditions as specified in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2. This device is a high performance RF integrated circuit with an ESD rating of < 2 kV. Handling and assembly of this device should only be done at ESD-protected workstations.
3. For signals SCLK, SDATA, SENB, PWDNB and XIN.


Description

The Si4136 is a monolithic integrated circuit that performs both IF and RF synthesis for wireless communications applications. The Si4136 includes three VCOs, loop filters, reference and VCO dividers, and phase detectors. Divider and power down settings are programmable through a three-wire serial interface.
