Product Details

Description



Features:

· TrenchFET Power MOSFETS
· Optimized for Low-Side Synchronous
  Rectifier Operation
· 100 % RG Tested


Application

· Buck Converter
· Synchronous Rectifier
- Secondary Rectifier

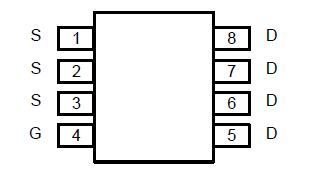

Pinout

Connection Diagram


Specifications

Parameter Symbol 5 secs Steady State Unit
Drain-Source Voltage VDS 30 V
Gate-Source Voltage VGS ±12
Continuous Drain Current (TJ = 150°C)a TA = 25°C ID 17 12 A
TA = 70°C 14 9
Pulsed Drain Current IDM ±50
Continuous Source Current (Diode Conduction)a IS 2.7 1.4
Maximum Power Dissipationa TA = 25°C PD 3.0 1.6 W
TA = 70°C 2.0 1.0
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150 °C
