Si4418DY

Features: ·TrenchFET® Power MOSFET·100% Rg TestedApplication·Primary Side SwitchPinoutSpecifications Parameter Symbol 10 secs Steady State Unit Drain-Source Voltage VDS 200 V Gate-Source Voltage VGS ±20 Continuous Drain Current (TJ = 150)a TA = 25 ID 3 2.3 A T...

product image

Si4418DY Picture
See larger image
SeekIC No. : 004490277 Detail

Si4418DY: Features: ·TrenchFET® Power MOSFET·100% Rg TestedApplication·Primary Side SwitchPinoutSpecifications Parameter Symbol 10 secs Steady State Unit Drain-Source Voltage VDS 200 V ...

Si4418DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si4418DY
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·TrenchFET® Power MOSFET
·100% Rg Tested




Application

·Primary Side Switch

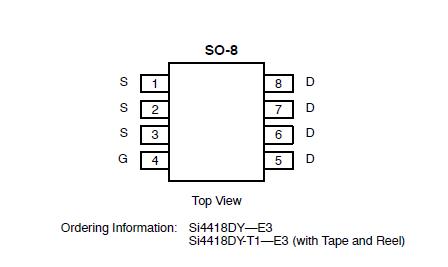

Pinout

Connection Diagram




Specifications

Parameter
Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS 200 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 150)a TA = 25 ID 3 2.3 A
TA = 70 2.1 1.6
Pulsed Drain Current IDM 12
Avalanch Current L = 0.1 mH IAS 6
Single Avalanche Energy (Duty Cycle 1%) EAS 1.8 mJ
continuous Source Current (Diode Conduction)a IS 2.1 1.25 A
Maximum Power Dissipationa TA = 25 PD 2.5 1.5 W
TA = 70 1.3 0.8
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150





Description

Si4418DY N-Channel 200-V (D-S) MOSFET
